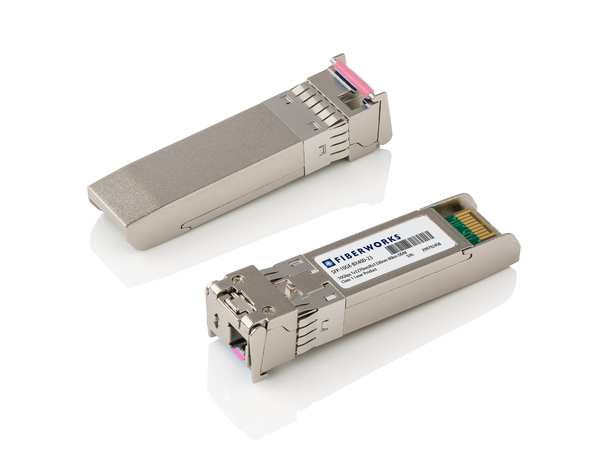

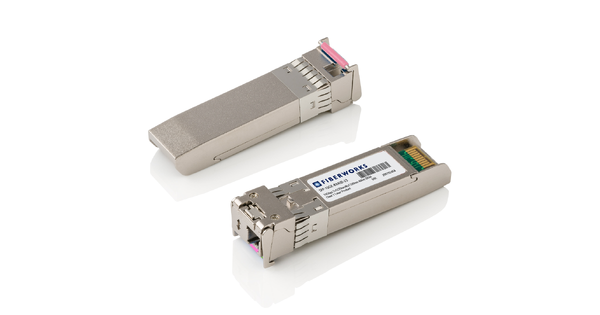

SFP+ BiDi, 10 GE, DDM, SM, 40km Tx/Rx=1270/1330nm, 14dB, LC

SFP+ BiDi, 10 GE, DDM, SM, 40km

Tx/Rx=1270/1330nm, 14dB, LC

Product nr: SFP-10GE-BX40D-23
Product
DescriptionTechnical infoAccessories
Description

The SFP-10GE-BX transceiver family are small form factor pluggable modules for bi-directional serial optical data communications such as 10GBASE Ethernet over a single optical fiber. The modules are compliant to the SFP+ MSA and are hot pluggable. Digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. The modules meet the requirements of the IEEE 802.3 10GBASE-BX Ethernet standard and are suitable for interconnections in 10G Ethernet environments.

SFP-10GE-BX uses 1270 nm and 1330 nm wavelengths for bi-directional transmission on a single fiber


APPLICATIONS
• 10GBASE-BX at 10.3125 Gb/s
• 10GBASE-BX at 9.953 Gb/s

FEATURES
• Up to 11.1 Gbps Data Links
• Single Mode LC Receptacle Bi-directional Transceiver
• Up to 40km transmission on SMF
• Power dissipation <1.0W
• 1270nm DFB laser and 1330nm PIN receiver
• Digital Diagnostic monitoring
• Compliant with SFP+ MSA with simplex LC connector
• Operating case temperature:0~+70ºC

Technical info

Product information

Form factor SFP+
Protocol / bit rate
  • 10 Gigabit Ethernet
  • 10G Fibre Channel
  • SDH STM-64
  • OTN/G.709/G.sup43 OTU2(e)
  • CPRI/OBSAI 1.228 - 3.072 Gbps
  • CPRI/OBSAI 4.915 - 9.830 Gbps
Media type Single fiber
Reach (dB) 14
Reach (km) 40
Wavelength (nm) 1270/1330
Laser Type DFB
Detector type PIN
Line Modulation NRZ
Tx power min. [dBm] -1
Tx power max. [dBm] +4
Rx sensitity [dBm] -15
Rx overload limit [dBm] 0
DDM Yes
Connector LC Simplex
Operating temperature range 0°C - +70°C (Standard)
Temperature range, storage -40°C - +85°C
Customs classification codes
  • ECCN: 5A991
  • HS: 8517.62.0090
