Fiberworks compact 4 ch. CWDM OADM

1351-1411, 900µm pigtails with LC/UPC

Product nr: F-CCOADM-4DC3541-O9L

Description

FEATURES
• Coarse WDM in compliance with ITU-T G.694.2

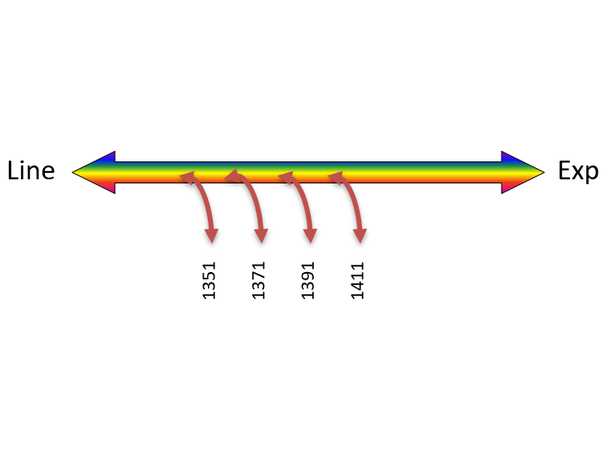

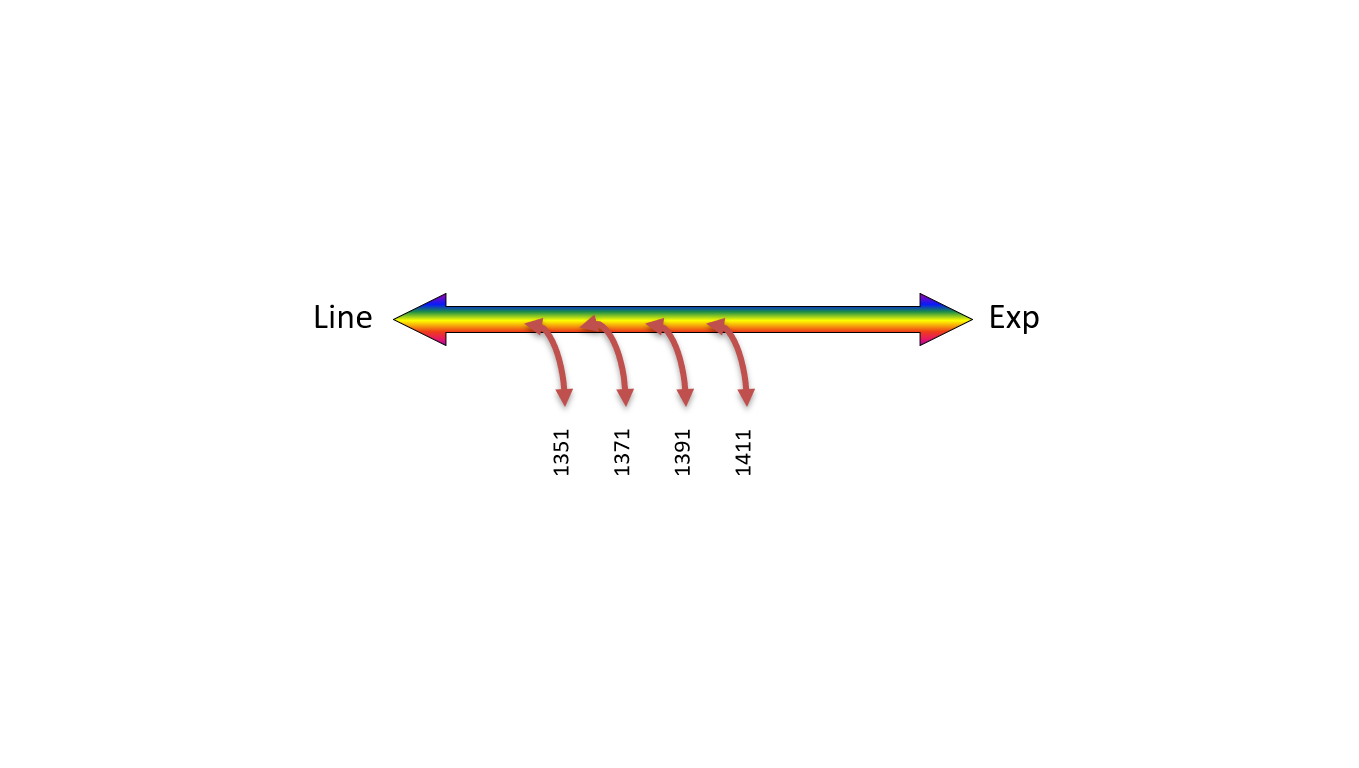

• Standard 4 CWDM channels 1351 – 1411 nm, 20 nm spacing

• "Drop & continue" OADM with single line fiber

• 54 x 32 x 7.4 mm box
• 0.5 m fibers, 900µm loose tube with LC/UPC connectors

• Operating temperature: -40 ~ +80 °C
• Based on thin film filters with epoxy free optical path
• Protocol transparent (support 1G, 10G etc.)

Technical info

Form factor	Mini module
Fiber type	SM
Line fiber	Single (bidi, mux/demux)
Channel count	4
Add/drop Capabilities	Yes, "drop & continue"
Connector type	Straight (UPC, PC)
Connector	LC/UPC
Customs classification codes	ECCN: EAR99 HS: 8517.62.0090
