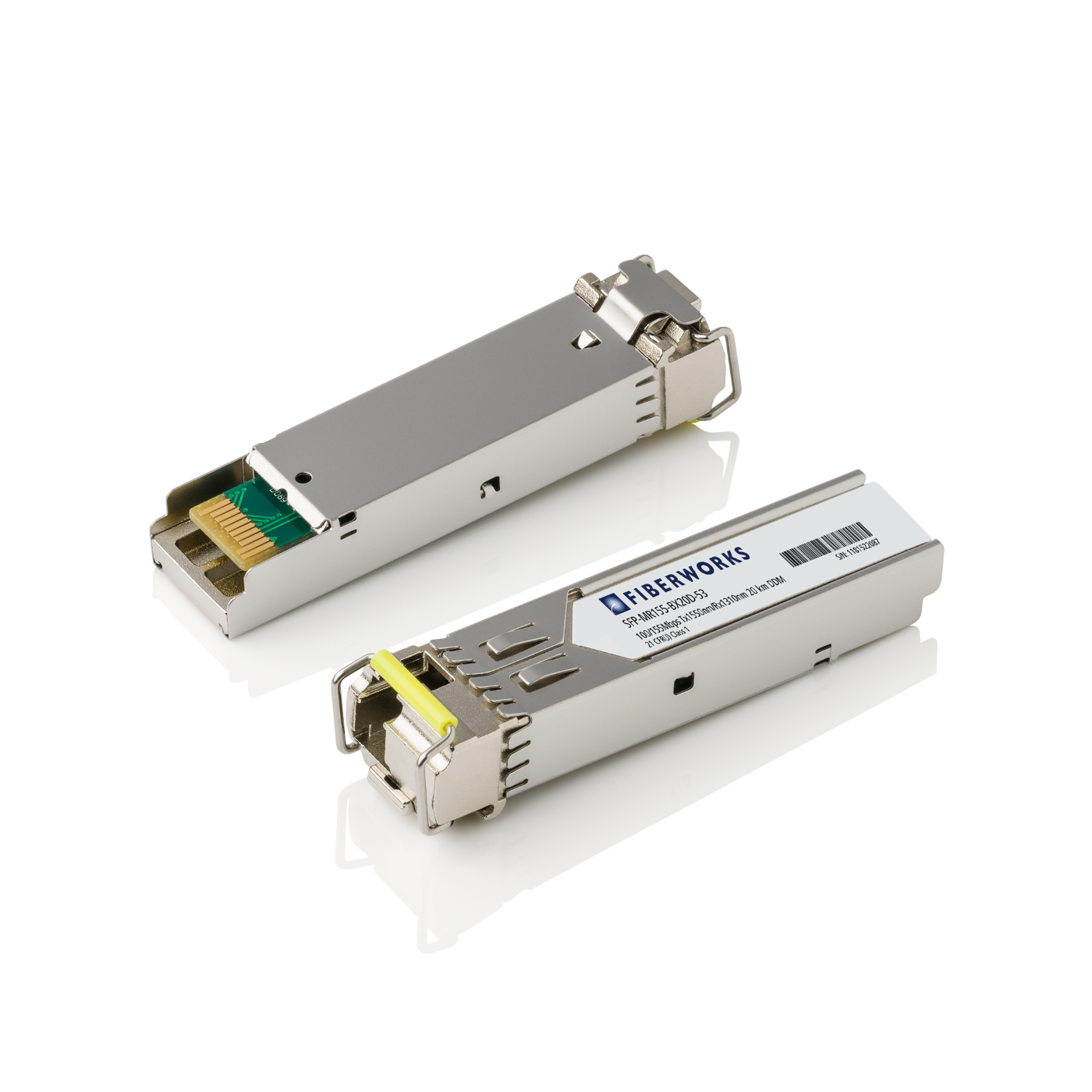

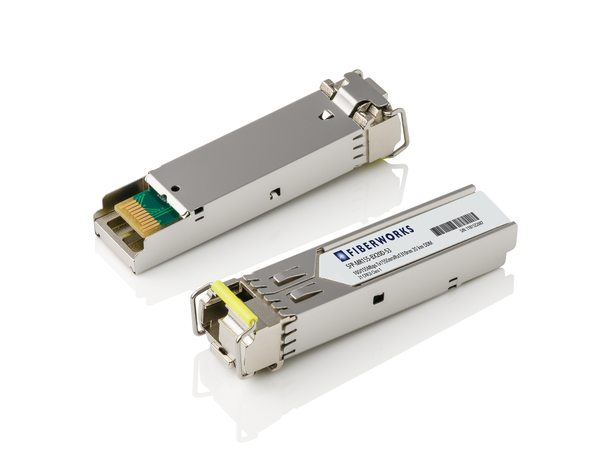

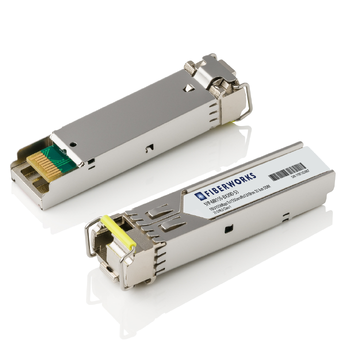

SFP BiDi, 100/155Mbps, DDM, SM, 20km TX/RX=1550/1310nm, 13 dB, LC

SFP BiDi, 100/155Mbps, DDM, SM, 20km

TX/RX=1550/1310nm, 13 dB, LC

Product nr: SFP-MR155-BX20D-53
Compatibility
Show variants as list
Product
DescriptionTechnical infoAccessories
Description
APPLICATIONS
• single fiber options 1310/1550
• 100Base Ethernet
• FTTx

FEATURES
• 20 km transmission on SM fiber
• Hot-Pluggable SFP footprint
• LC optical interface
• compliant to SFP MSA and SFF-8472
• Digital Diagnostics Monitoring
• Industrial operating temperature -40 °C to 85 °C
Technical info

Product information

Form factor SFP
Protocol / bit rate
  • Fast Ethernet
  • SDH STM-1
Media type Single fiber
Reach (dB) 13
Reach (km) 20
Wavelength (nm) 1310/1550
DDM Yes
Connector LC Simplex


Accessories
SFP BiDi, 100/155Mbps, DDM, SM, 20km TX/RX=1550/1310nm, 13 dB, LC, Cisco
SFP BiDi, 100/155Mbps, DDM, SM, 20kmTX/RX=1550/1310nm, 13 dB, LC, CiscoProductnbrSFP-MR155-BX20D-53-C
SFP BiDi, 100/155Mbps, DDM, SM, 20km TX/RX=1550/1310nm, 13 dB, LC, Fiberworks
SFP BiDi, 100/155Mbps, DDM, SM, 20kmTX/RX=1550/1310nm, 13 dB, LC, FiberworksProductnbrSFP-MR155-BX20D-53-U
SFP BiDi, 100/155Mbps, DDM, SM, 20km TX/RX=1550/1310nm, 13 dB, LC, Juniper EX
SFP BiDi, 100/155Mbps, DDM, SM, 20kmTX/RX=1550/1310nm, 13 dB, LC, Juniper EXProductnbrSFP-MR155-BX20D-53-X
