39080

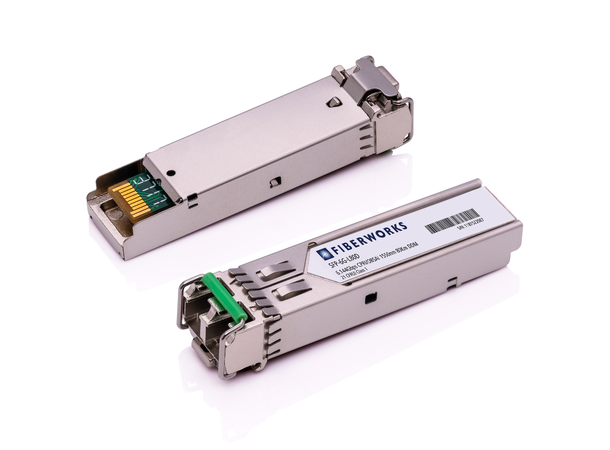

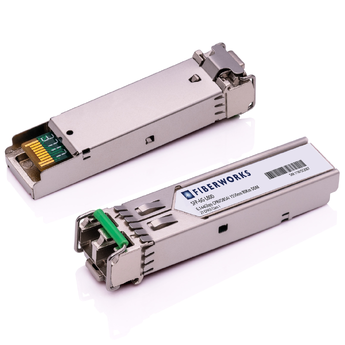

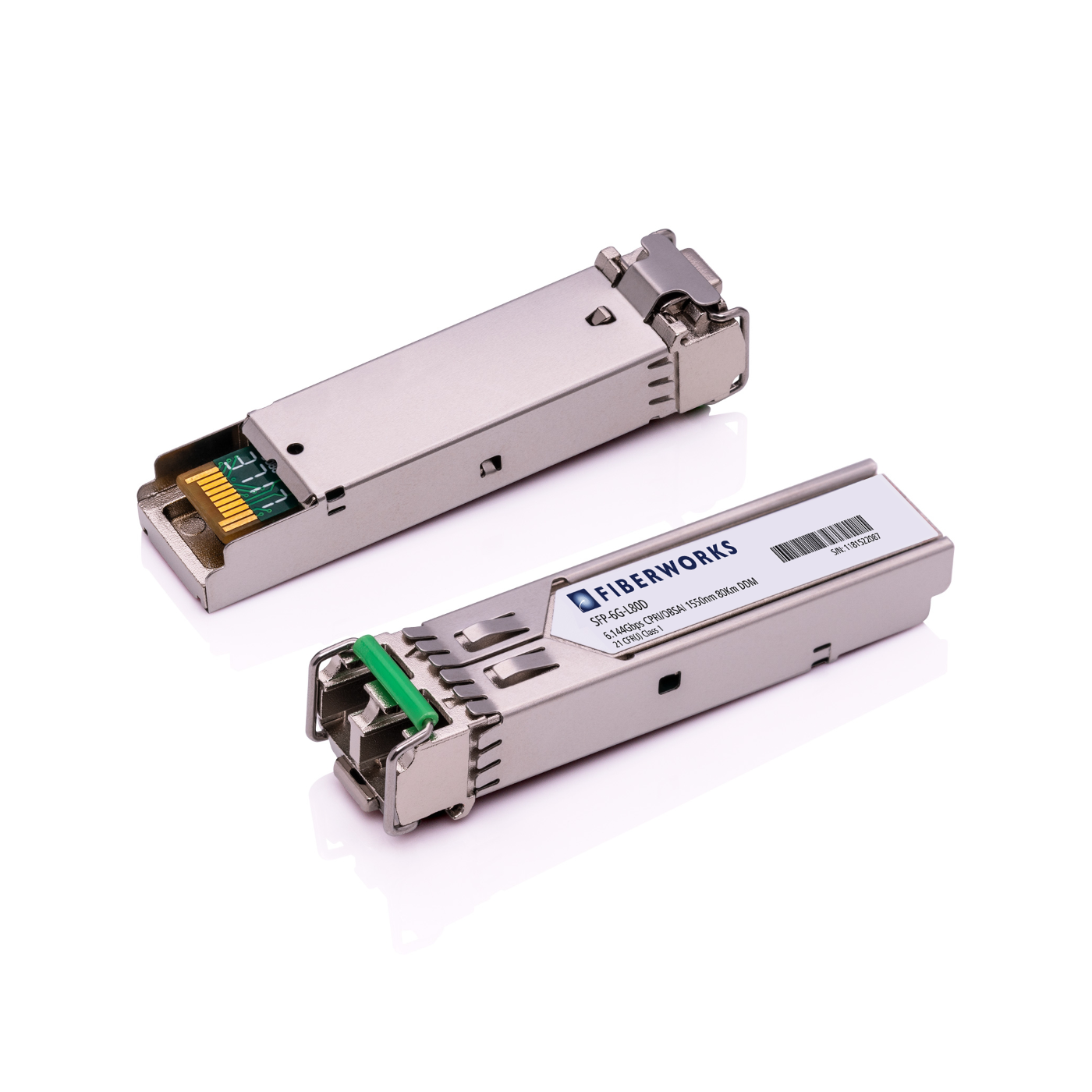

SFP, CPRI/OBSAI 6.144 Gbps, DDM, 80km

1550nm, 11dB, SM, Rugged

Product nr: SFP-6G-L80D
Product
DescriptionTechnical info
Description
APPLICATIONS
• CPRI 1.228 Gbps - 6.144 Gbps
• OBSAI 1.228 Gbps - 6.144 Gbps

FEATURES

• SFF-8472 Digital Diagnostic Function
• Supports CPRI/OBSAI data rates from 1.228 Gbps to 6.144 Gbps (CPRI line rates 2-6)
• Operating wavelength at 1550 nm
• 80 km transmission with 9/125 µm SM fiber (24 dB)
• Duplex LC connector type
• Small Form-Factor Pluggable (SFP) MSA compatible
• +3.3V single power supply
• Suitable for outdoor installations:
  Industrial temperature range -40ºC to 85ºC

Technical info

Product information

Form factor SFP+
Protocol / bit rate
  • CPRI/OBSAI 1.228 - 3.072 Gbps
  • CPRI/OBSAI 4.915 - 6.144 Gbps
Media type Singlemode
Reach (dB) 24
Reach (km) 80
Wavelength (nm) 1550
DDM Yes
Connector LC Duplex


39080
