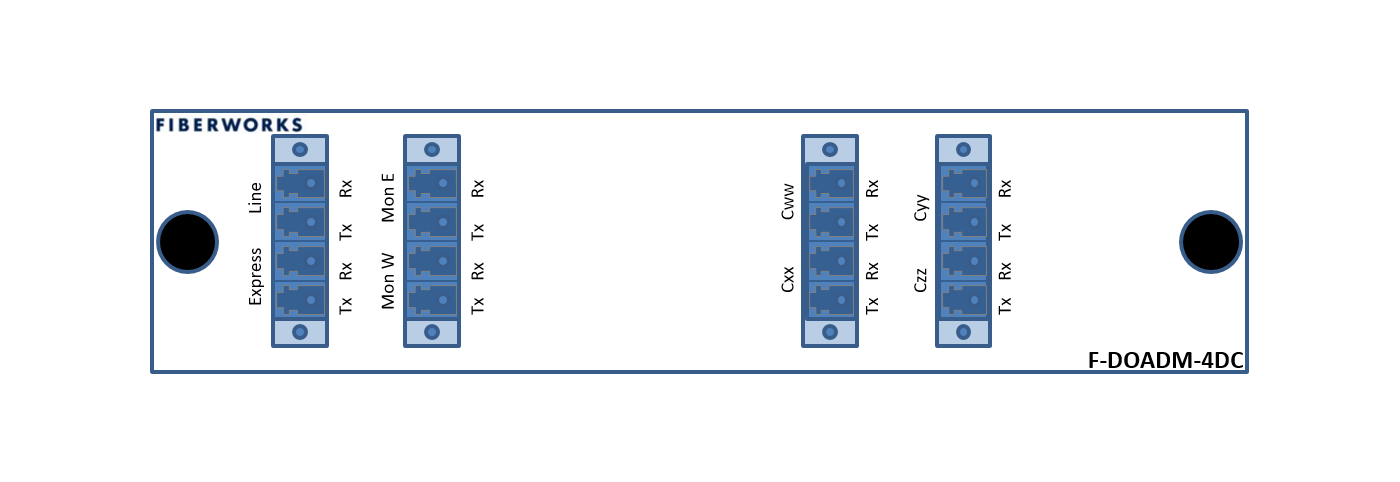

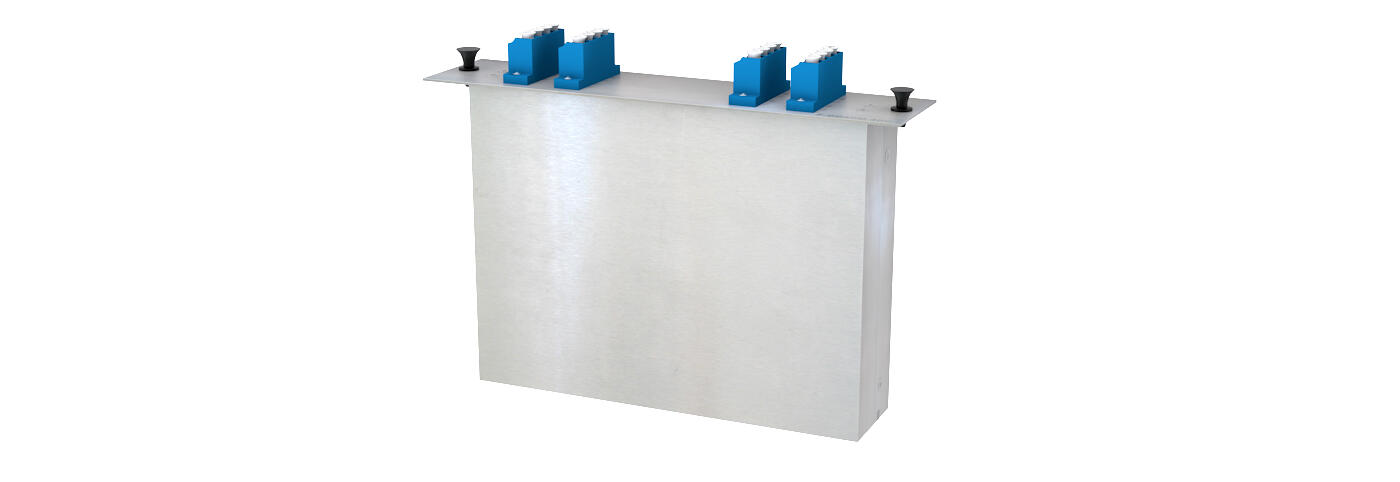

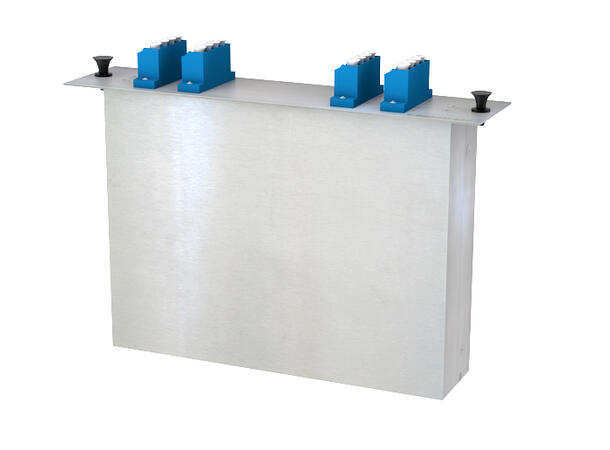

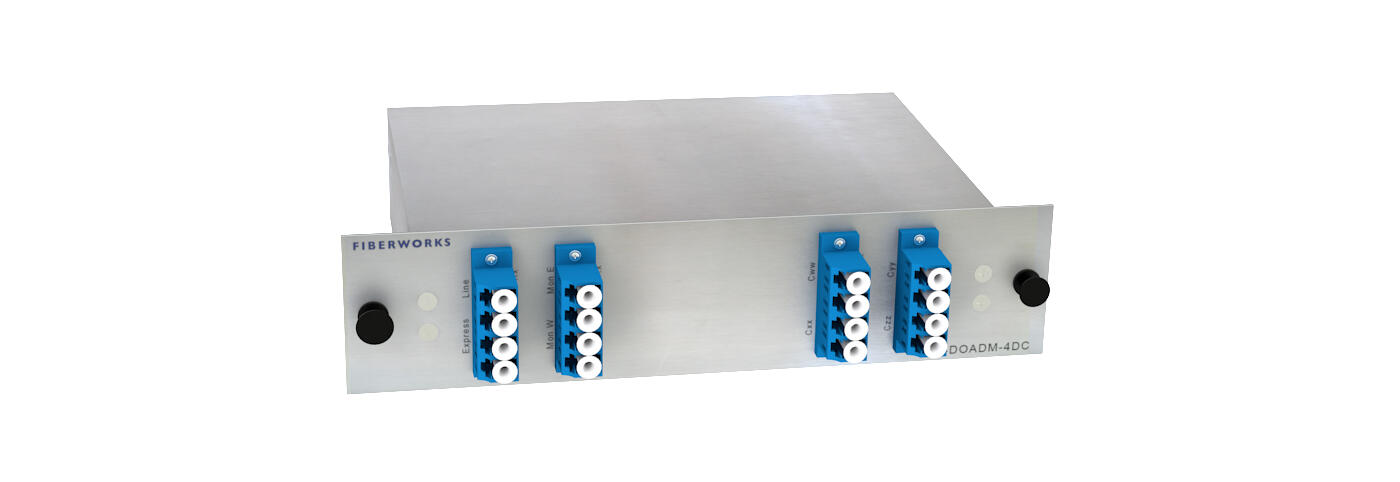

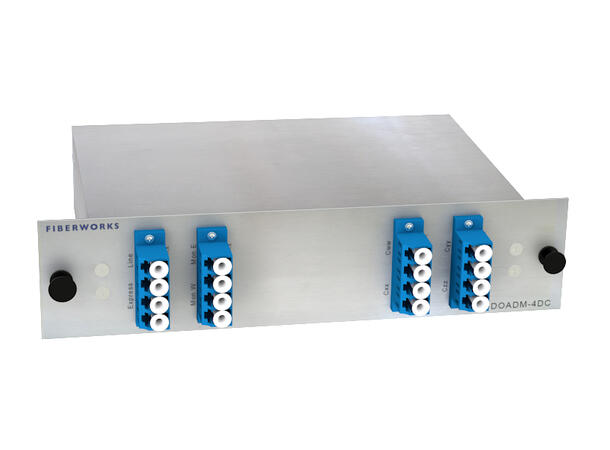

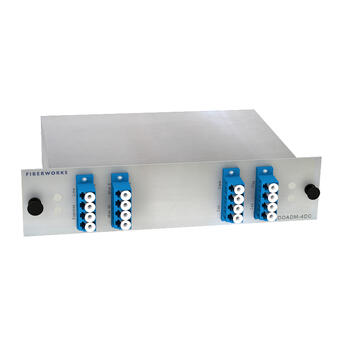

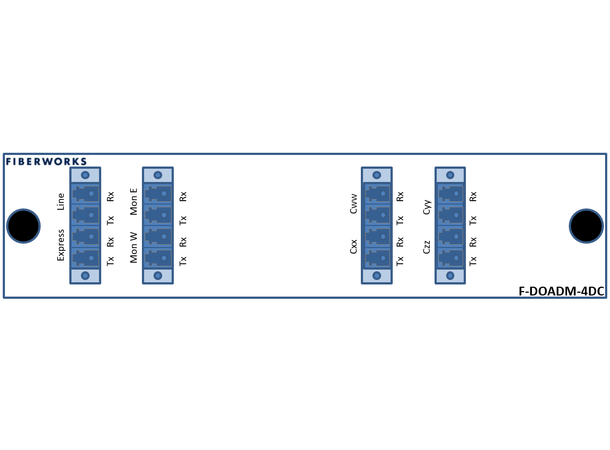

Fiberworks 4 ch. DWDM OADM w/mon.ports

"drop and continue", LC

Product nr: F-DOADM-4DC-MLU-xxyy
Product
DescriptionTechnical infoAccessories
Description
FEATURES
- Dense WDM in compliance with ITU-T G.694.1
-
Optical add/drop multiplexer (OADM) for 4 consecutive 100GHz DWDM channels

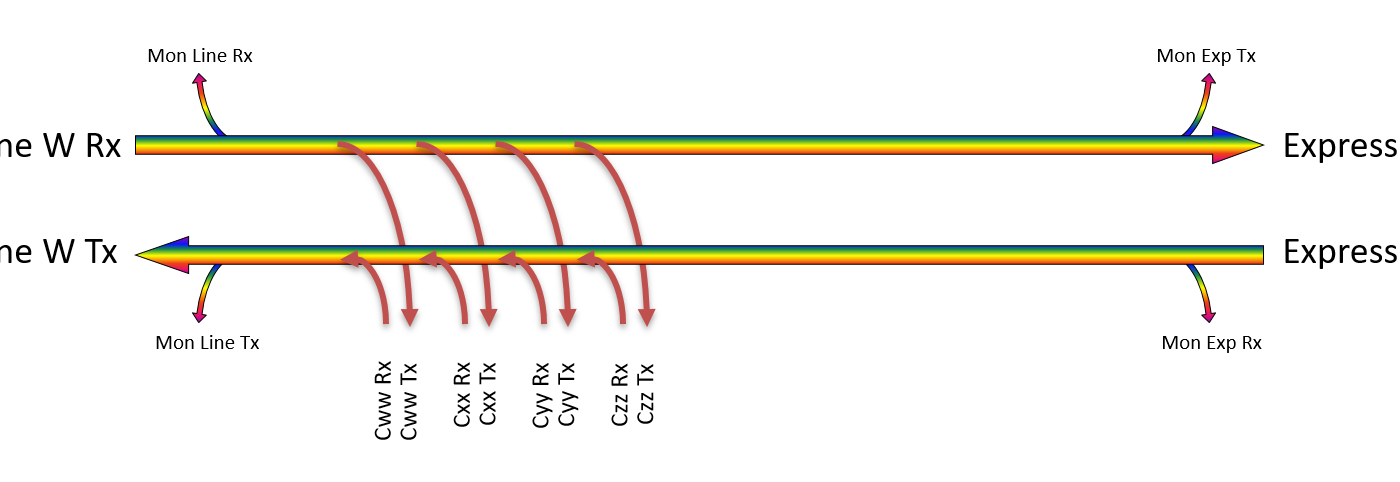

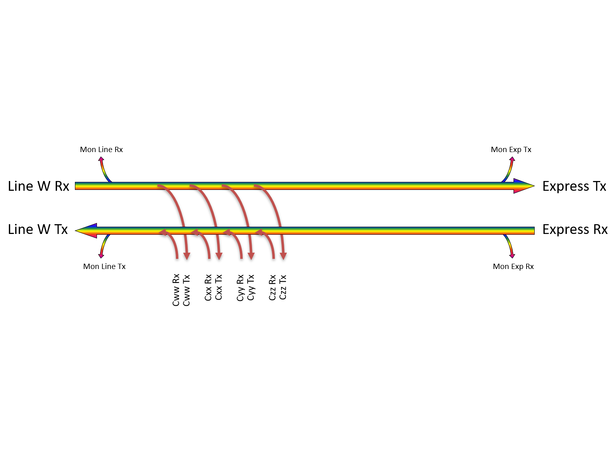

- "Drop and continue" (one direction)
- Based on thin film optics with epoxy free optical path
- Four 1% monitor ports for easy troubleshooting
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
- LC connectors

Technical info

Product information

Form factor Fiberworks
Line fiber Double (fiber pair, mux+demux)
OADM Yes, "drop & continue"
Expansion port No
Monitor port Yes (1%)
Connector type Straight (UPC, PC)
