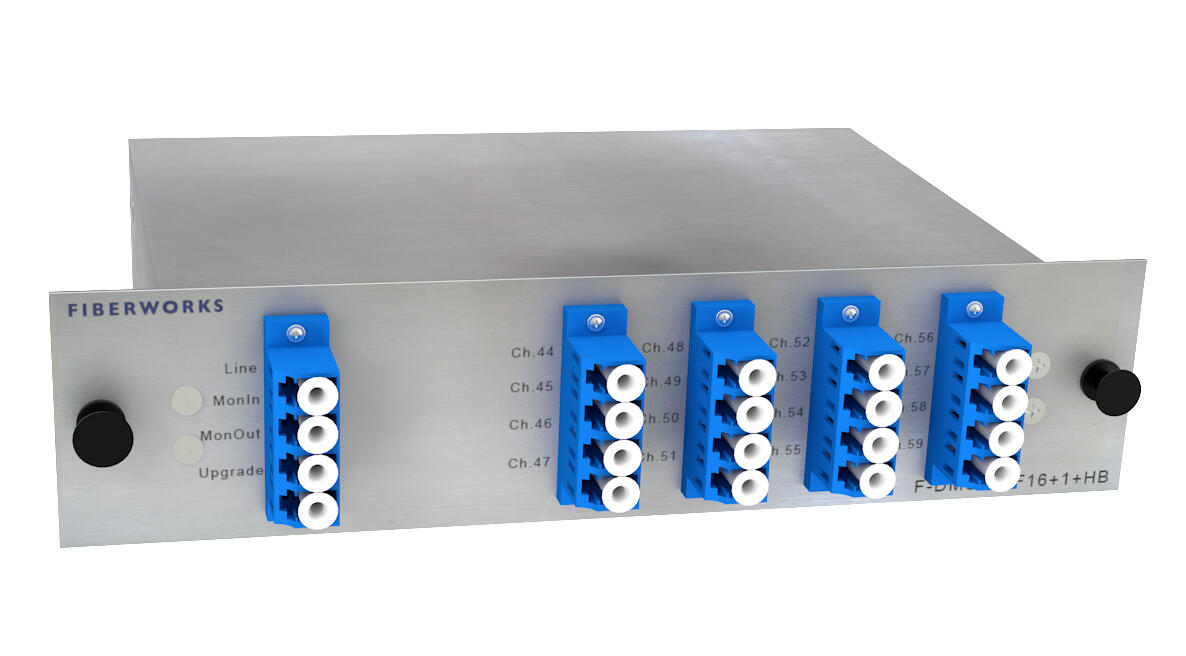

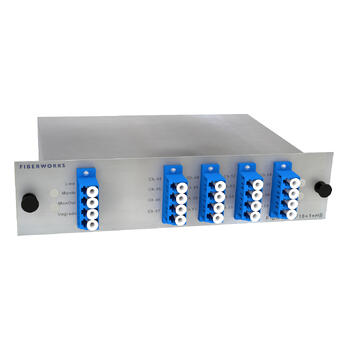

Fiberworks 16+1 ch. DWDM Mux/Demux, High

C44-C59, 100GHz, Upg & Mon, single fiber

Product nr: F-DMUX-SF16+1-HB-MLU
DescriptionTechnical infoAccessories
Description
FEATURES
- Dense WDM in compliance with ITU-T G.694.1
- 16 DWDM channels 44-59 with 100 GHz spacing
- For bidi operation on single fiber
- Insertion loss (max/typical): < 3.6 / 3.4 dB
- Upgrade port for 16 additional DWDM channels
- Two 2% monitor ports for easy troubleshooting
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
- LC/UPC connectors

Technical info

Product information

Line fiber Single (bidi, mux/demux)
OADM No, mux/demux
Expansion port Yes, 1550WB
Monitor port Yes (1%)
Connector type Straight (UPC, PC)
