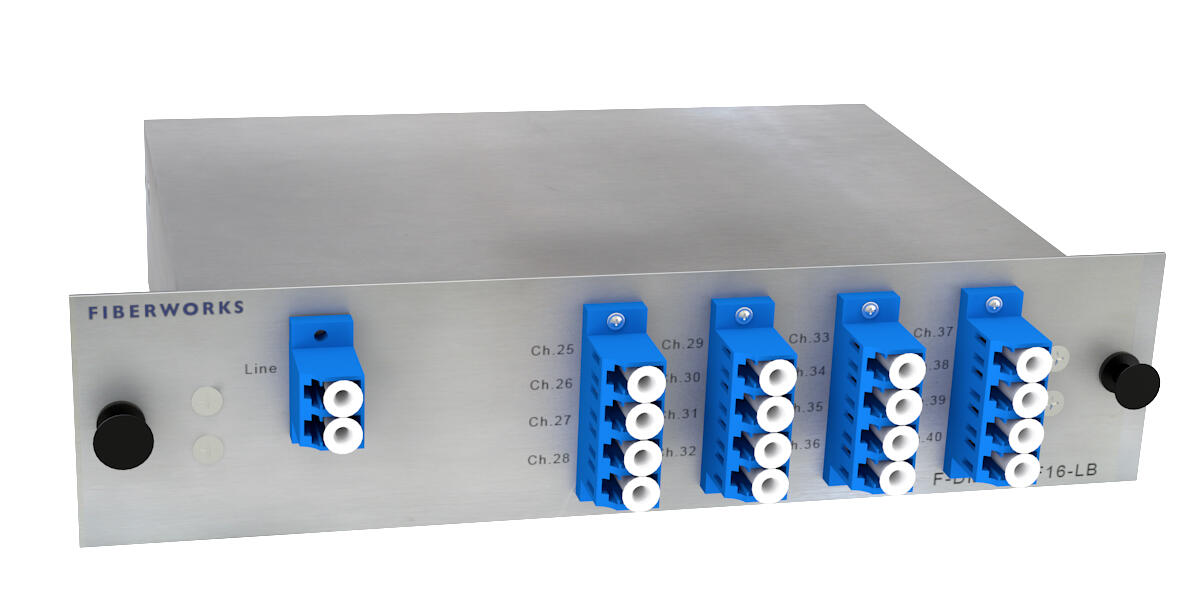

Fiberworks 16 ch. DWDM Mux/Demux, Low

ITU ch. 25-40, 100 GHz, Single fiber

Product nr: F-DMUX-SF16-LB-LU
DescriptionTechnical infoAccessories
Description
FEATURES
- Dense WDM in compliance with ITU-T G.694.1
- 16 DWDM channels 25-40 with 100 GHz spacing
- For bidi operation on single fiber
- Insertion loss (max/typical): < 3.3 / 3.0 dB
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
- LC/UPC connectors


Technical info

Product information

Form factor Fiberworks
Line fiber Single (bidi, mux/demux)
OADM No, mux/demux
Expansion port No
Monitor port No
Connector type Straight (UPC, PC)
