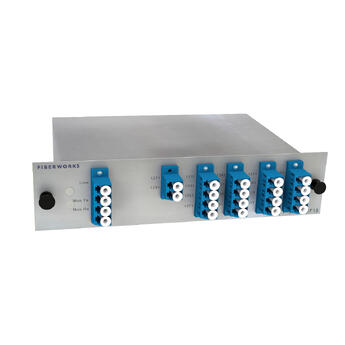

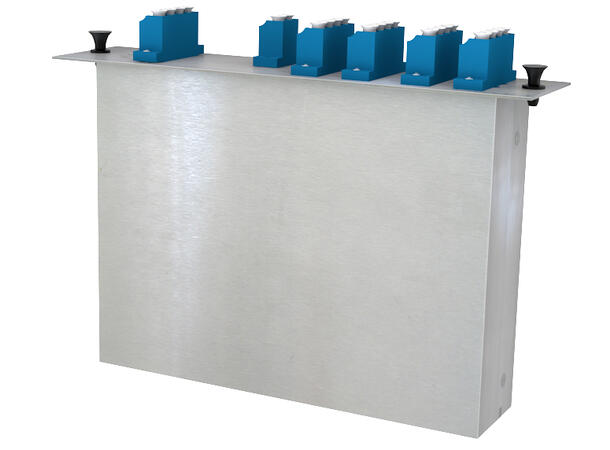

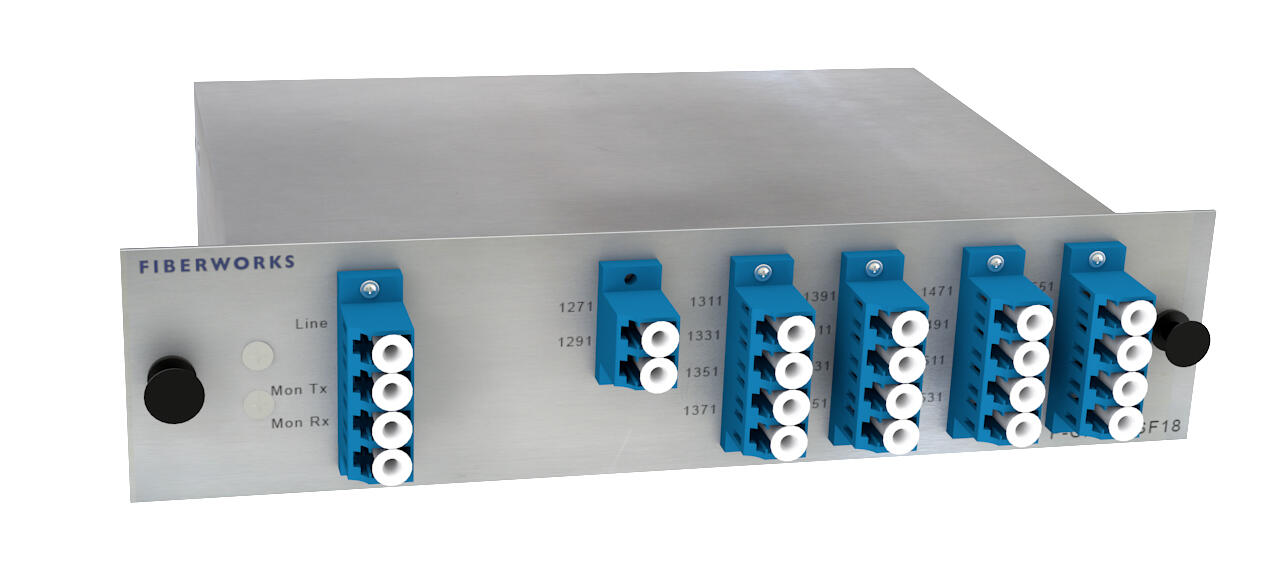

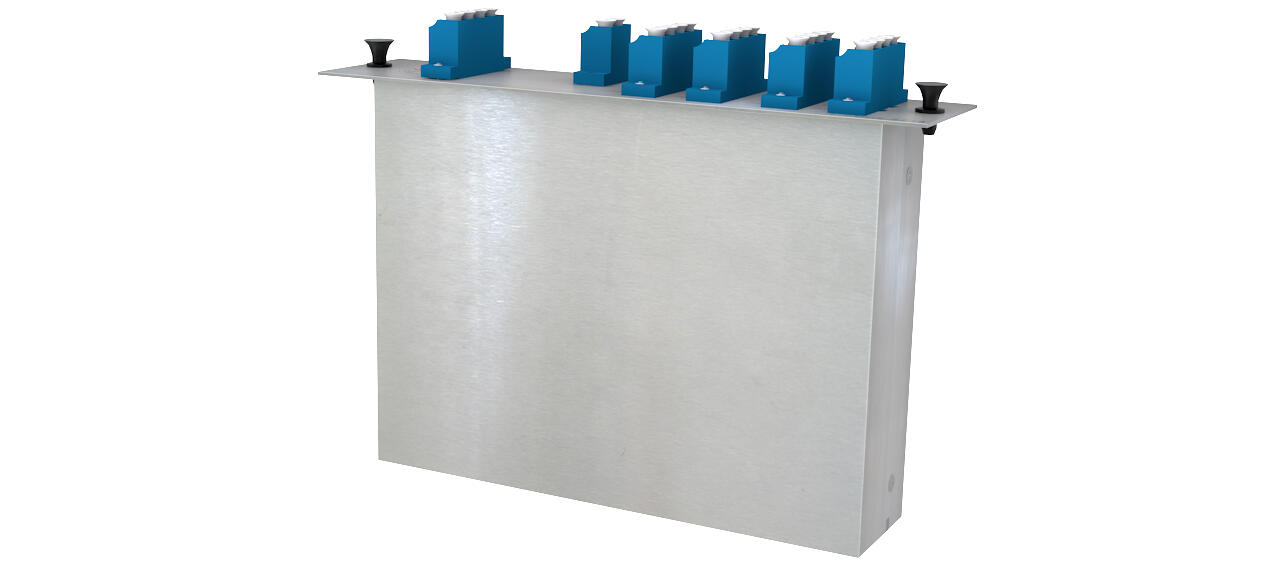

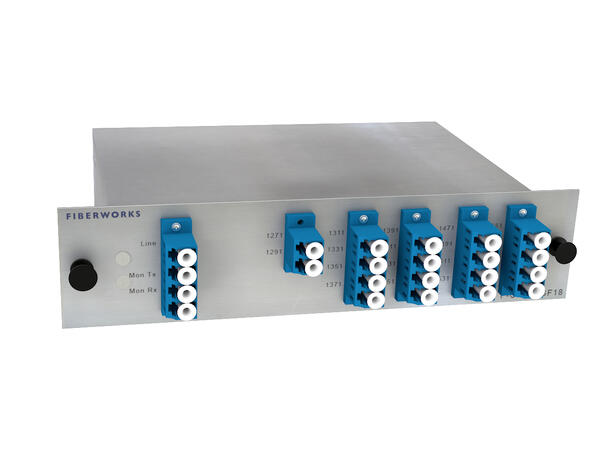

Fiberworks 18ch. CWDM 1-fiber Mux/Demux

Single line fiber, Mon. port, LC/UPC

Product nr: F-CMUX-SF18-2761-MLU
DescriptionTechnical infoAccessories

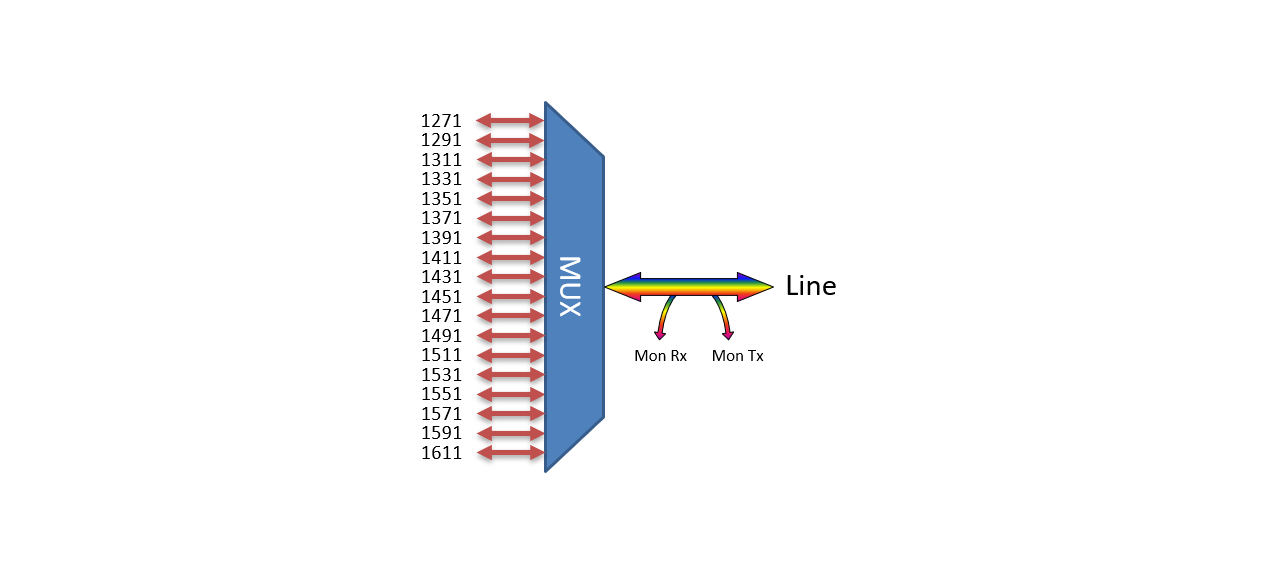

•  Coarse WDM in compliance with ITU-T G.694.2

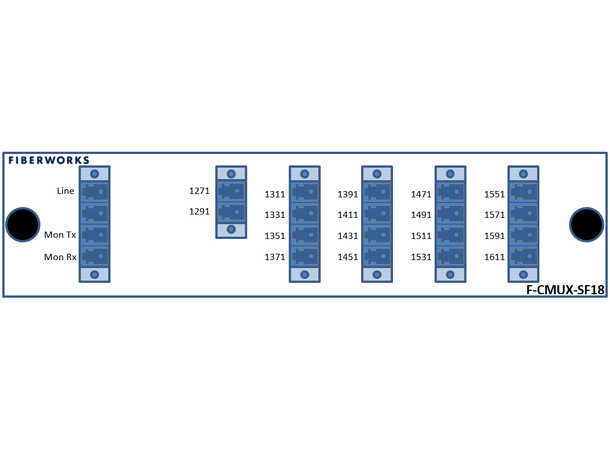

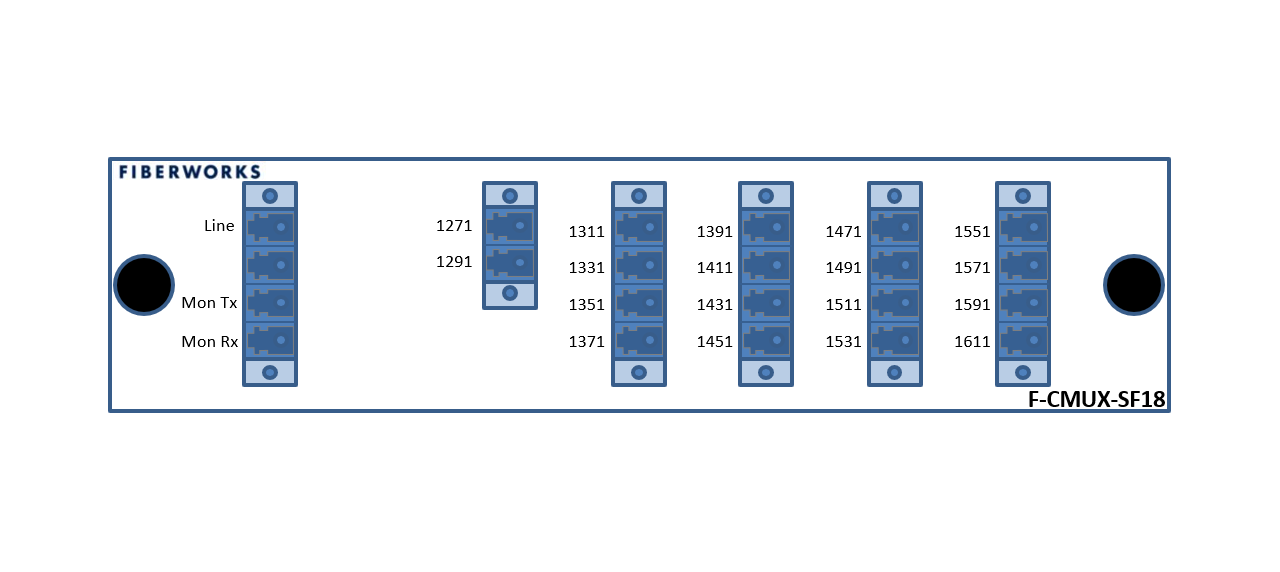

•  18 standard CWDM wavelengths (1271 nm  - 1611 nm)
•  Single line fiber
•  2% monitoring ports for Tx and Rx for easy troubleshooting and turn-up.
•  Based on thin film optics with epoxy free optical path
•  Protocol transparent (support 1G, 10G etc.)
•  Two modules fit in 1U in 19" rack
•  LC/UPC connectors

Technical info

Product information

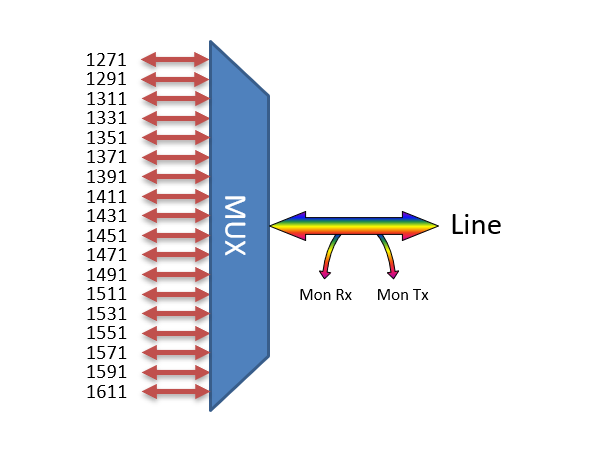

Line fiber Single (bidi, mux/demux)
Channel count 18
OADM No, mux/demux
Expansion port No
Monitor port Yes (1%)
Connector type Straight (UPC, PC)
Connector LC/UPC
