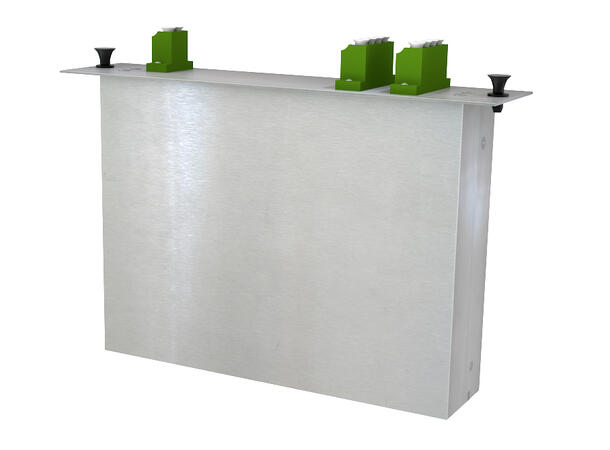

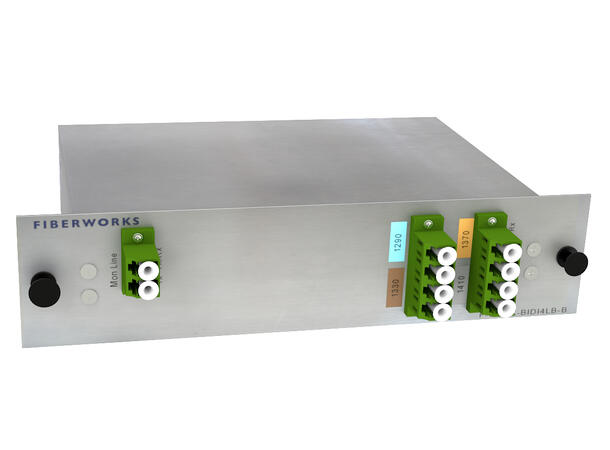

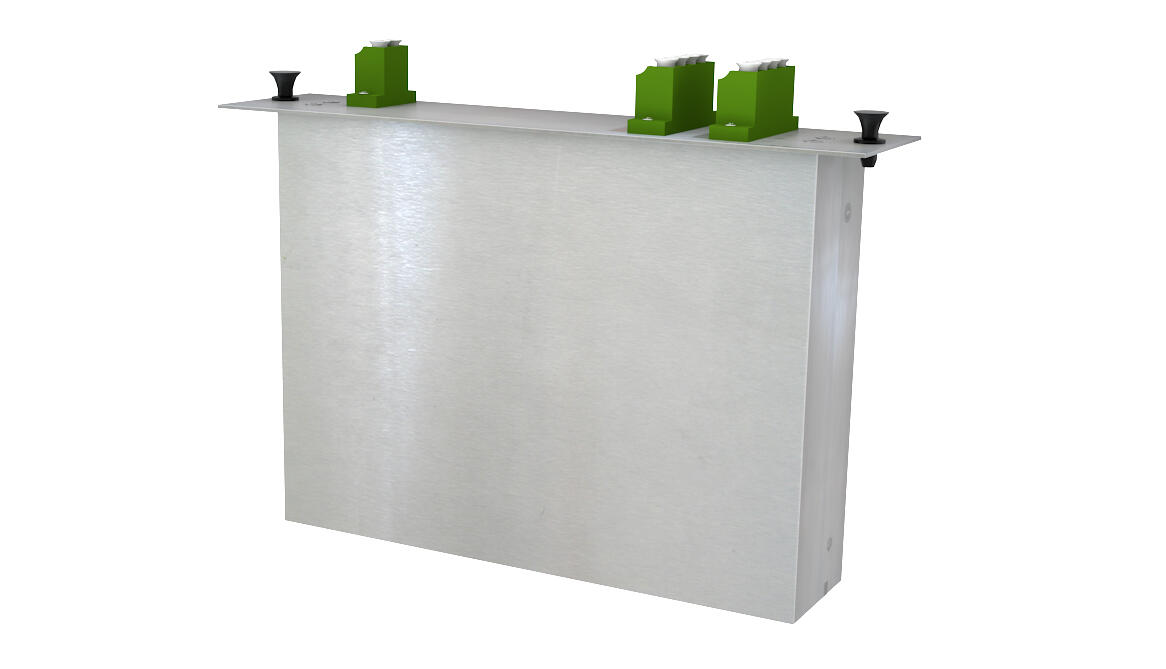

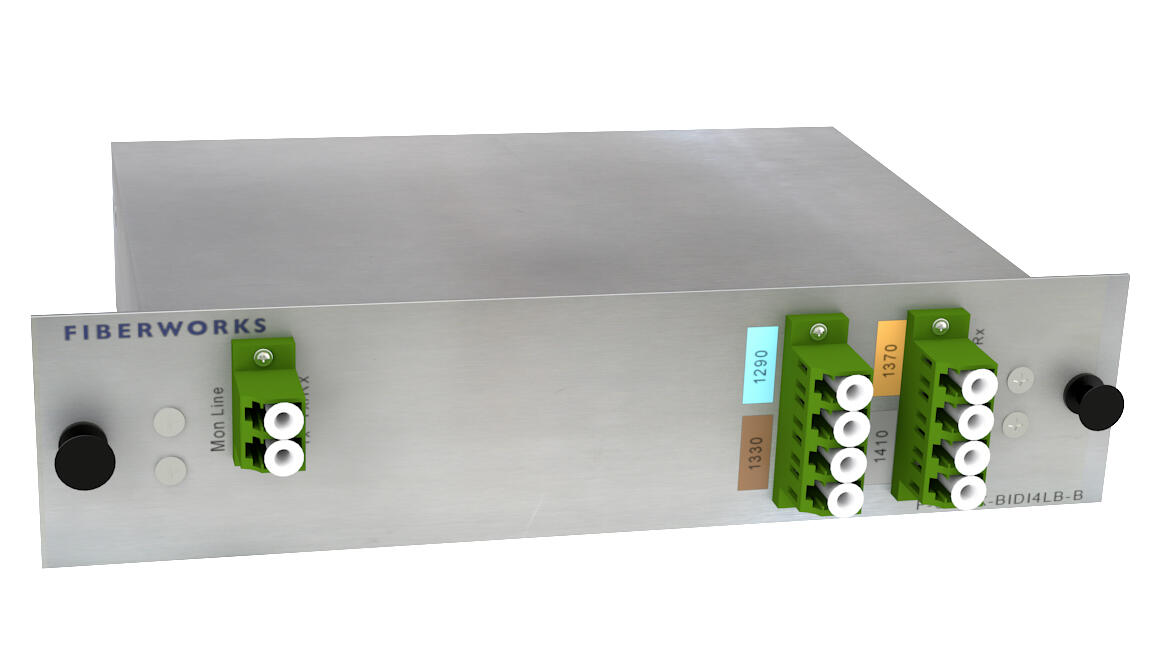

Fiberworks 4ch. CWDM BiDi CATV Mux/Demux

Low Band, Mon. port, LC/APC, B-side

Product nr: F-CMUX-BIDI4LB-B-MLA
DescriptionTechnical infoAccessories
Description
FEATURES
•  Coarse WDM in compliance with ITU-T G.694.2

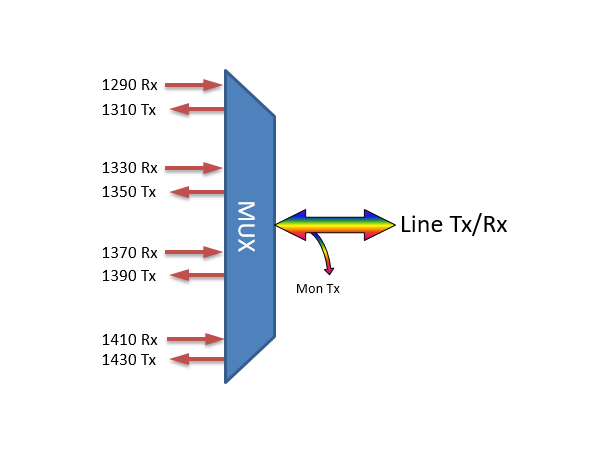

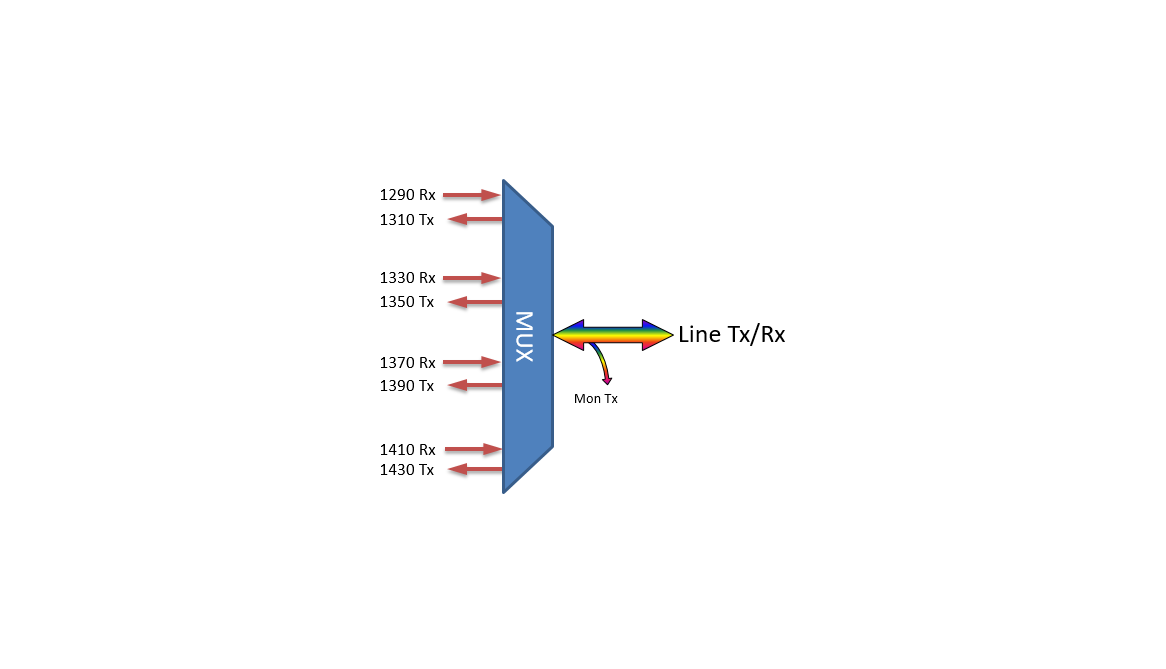

•  4 bi-directional channels using standard 8-channel CWDM low band 1290 – 1430 nm, 20 nm spacing
•  2% monitoring port for Tx.
•  Based on thin film optics with epoxy free optical path
•  Protocol transparent (support 1G, 10G etc.)
•  Two modules fit in 1U in 19" rack

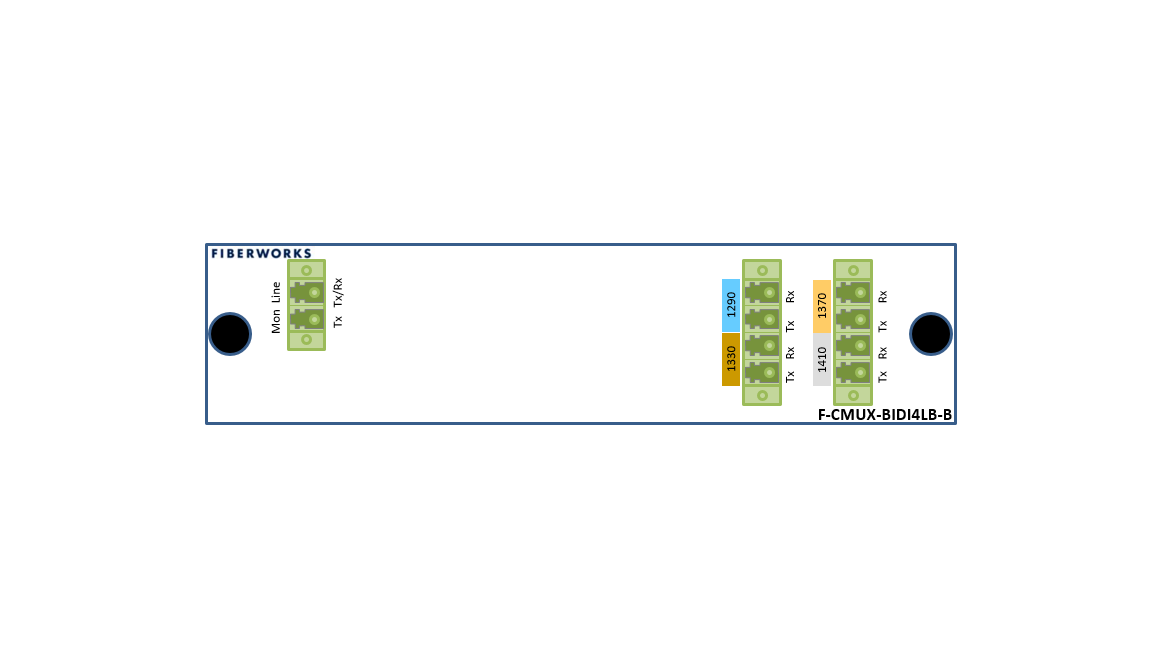

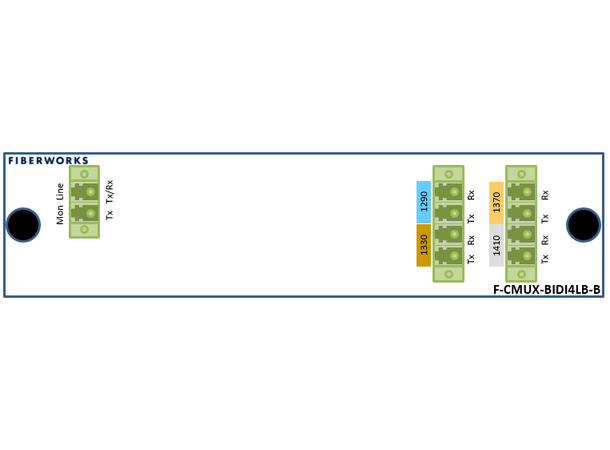

•  LC/APC connectors


Technical info

Product information

Form factor Fiberworks
Line fiber Single (bidi, mux/demux)
Channel count 4
OADM No, mux/demux
Expansion port No
Monitor port Yes (1%)
Connector type Angled (APC, for CATV)
Connector LC/APC
