37106

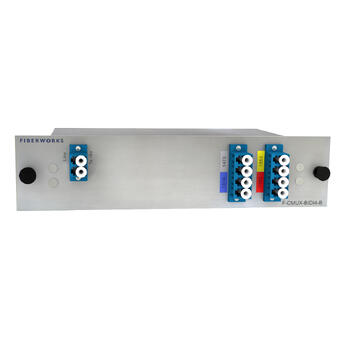

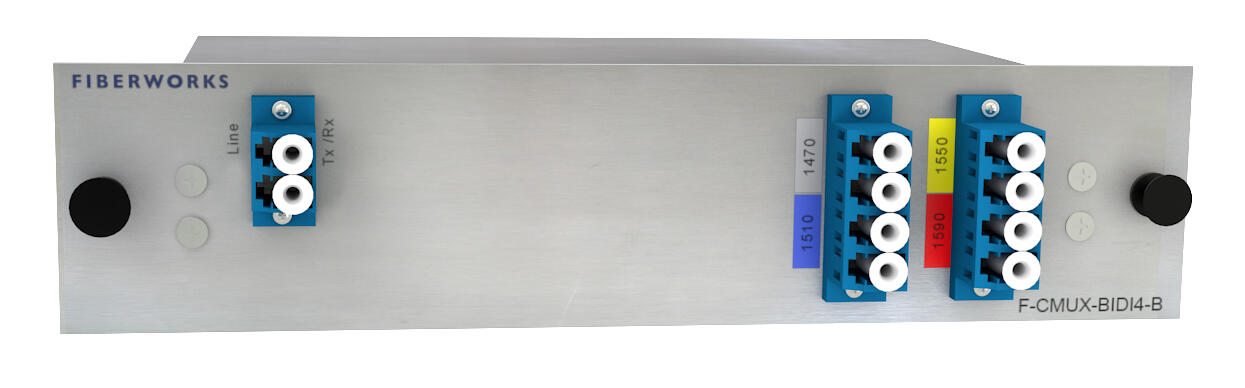

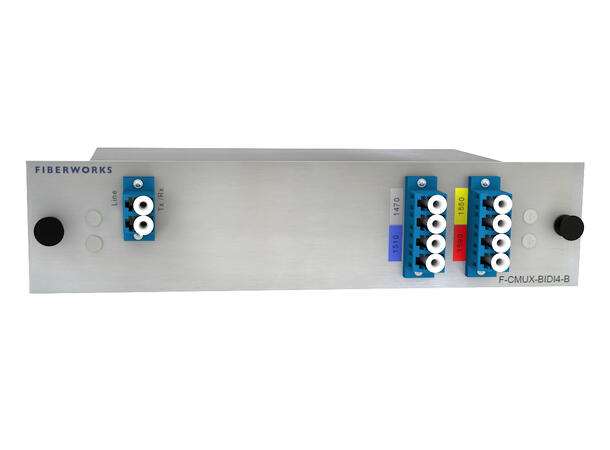

Fiberworks 4 ch. CWDM BiDi Mux/Demux

Low Loss, Single fiber, LC/UPC, B-side

Product nr: F-CMUX-BIDI4-B-LL-LU
DescriptionTechnical infoAccessoriesAlternatives
Description
FEATURES
- Coarse WDM in compliance with ITU-T G.694.2
- 4 bi-directional channels using 8 CWDM wavelengths 1470nm - 1610nm with 20nm spacing

- Ultra low insertion loss (< 1.3 dB)
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
- LC/UPC connectors

Technical info

Product information

Form factor Fiberworks
Fiber type SM
Connector LC/UPC
