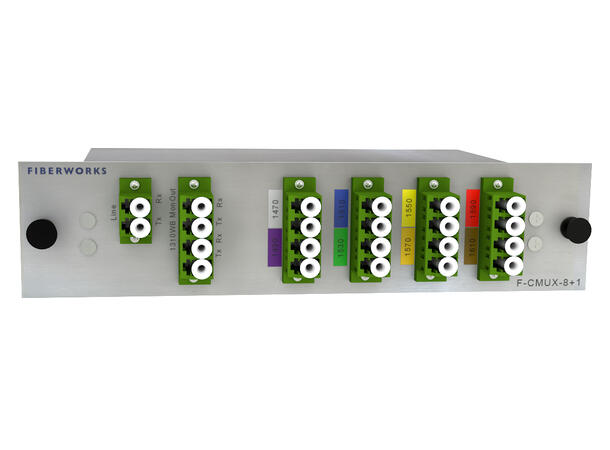

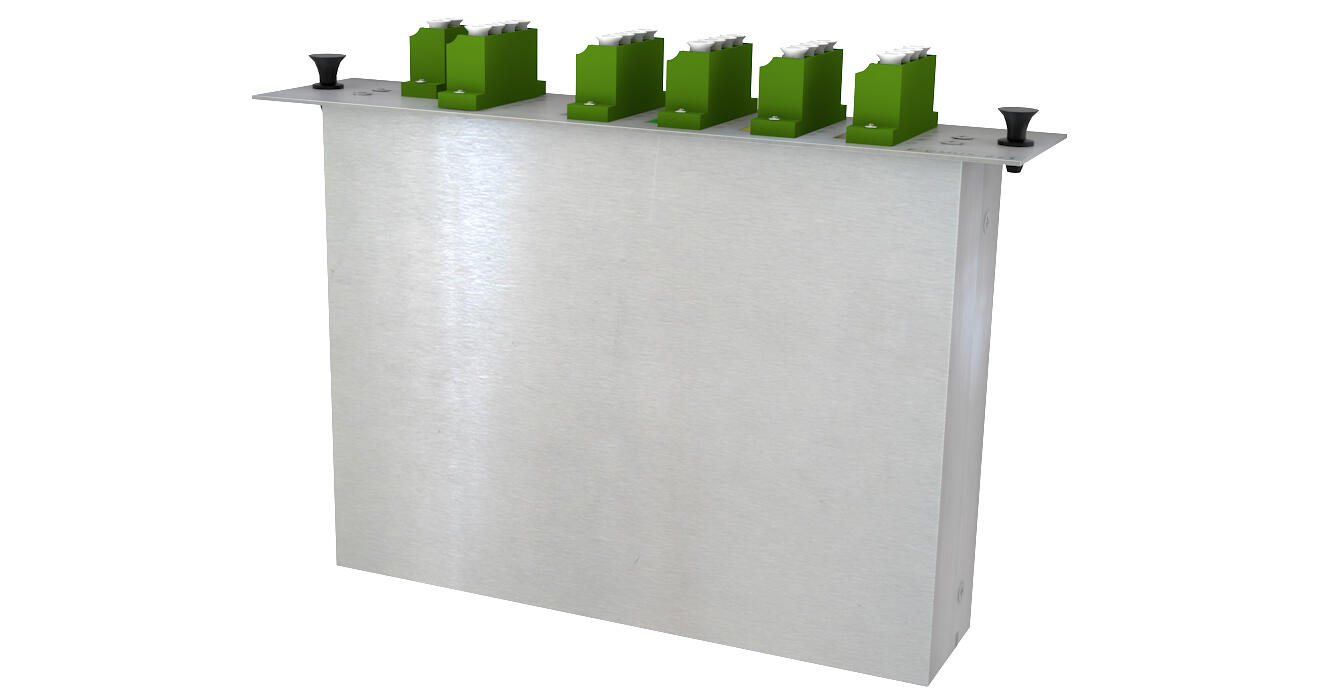

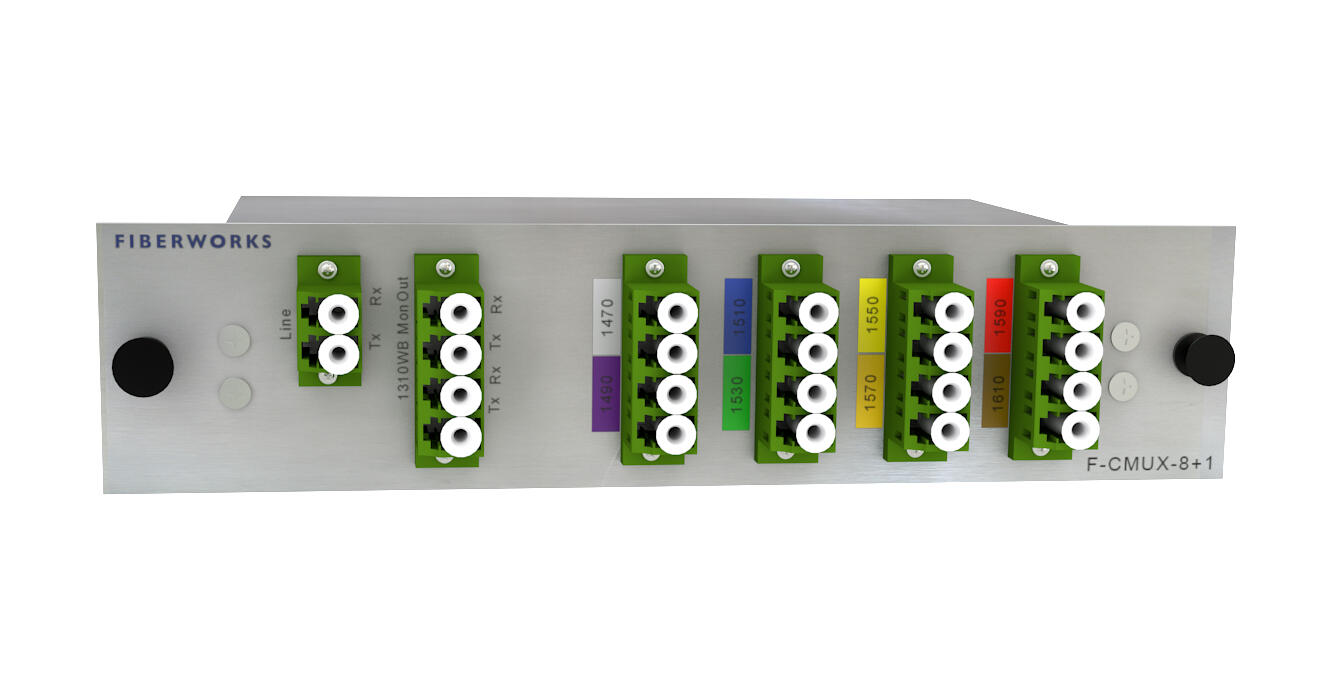

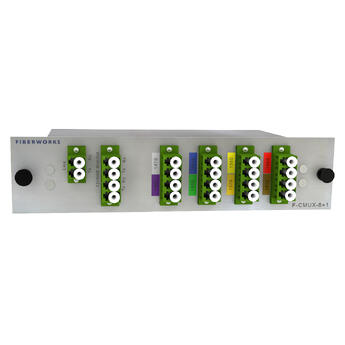

Fiberworks 8+1 CATV CWDM Mux+Demux, APC

C47-C61 + 1310nm/CWDM upgrade, Mon.ports

Product nr: F-CMUX-8+1-4761-MLA
Product
DescriptionTechnical infoAccessoriesAlternatives
Description
FEATURES
- Coarse WDM in compliance with ITU-T G.694.2
- 8 CWDM channels 1470nm - 1610nm with 20nm spacing
- 1310nm wideband/upgrade port
- Two 2% monitor ports for easy troubleshooting
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
- LC/APC connectors for minimal reflections

Technical info

Product information

Form factor Fiberworks
Line fiber Double (fiber pair, mux+demux)
Channel count 8
OADM No, mux/demux
Expansion port Yes, 1310WB
Monitor port Yes (1%)
Connector type Angled (APC, for CATV)
Connector LC/APC
