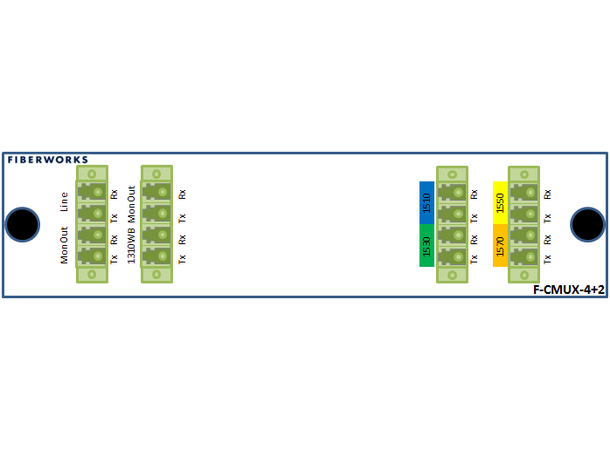

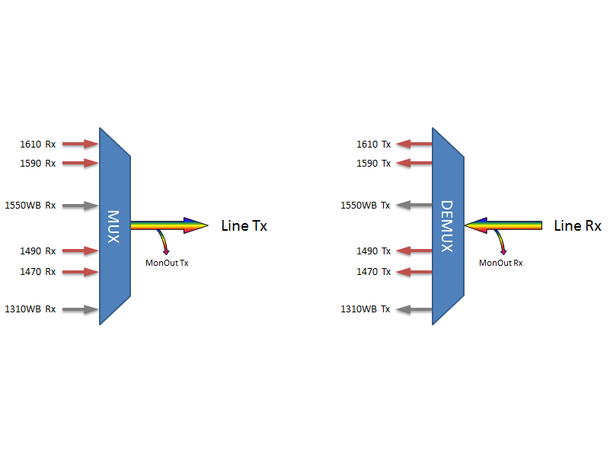

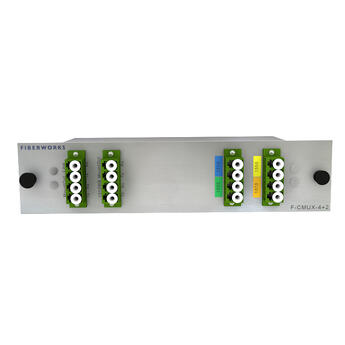

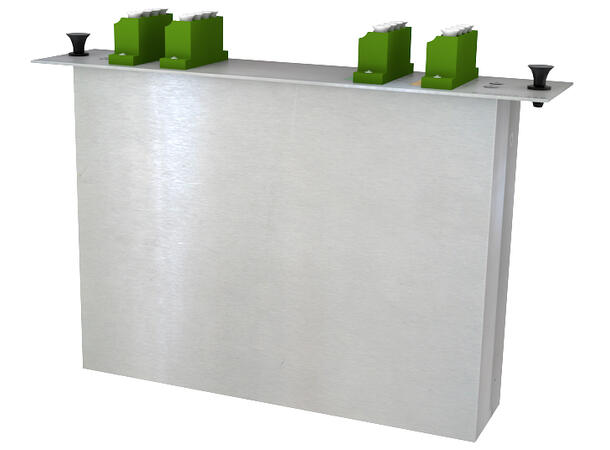

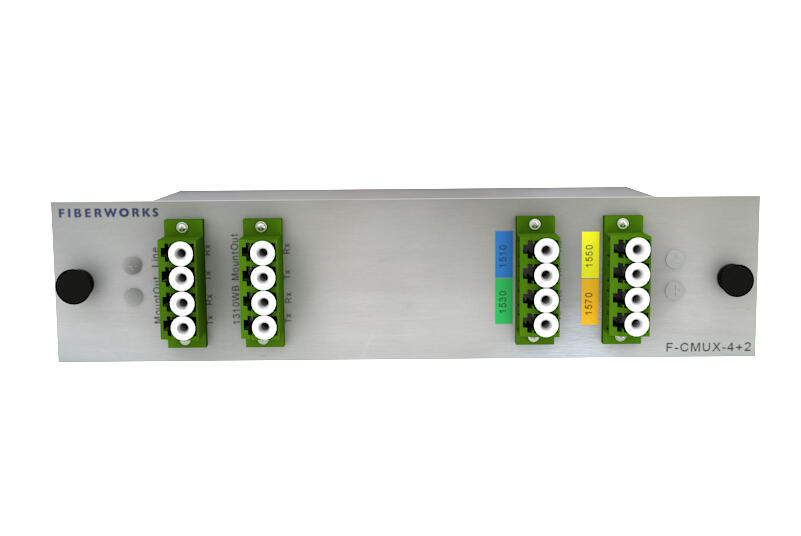

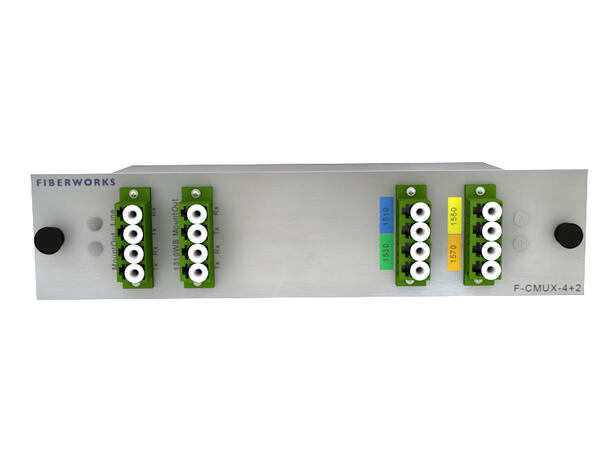

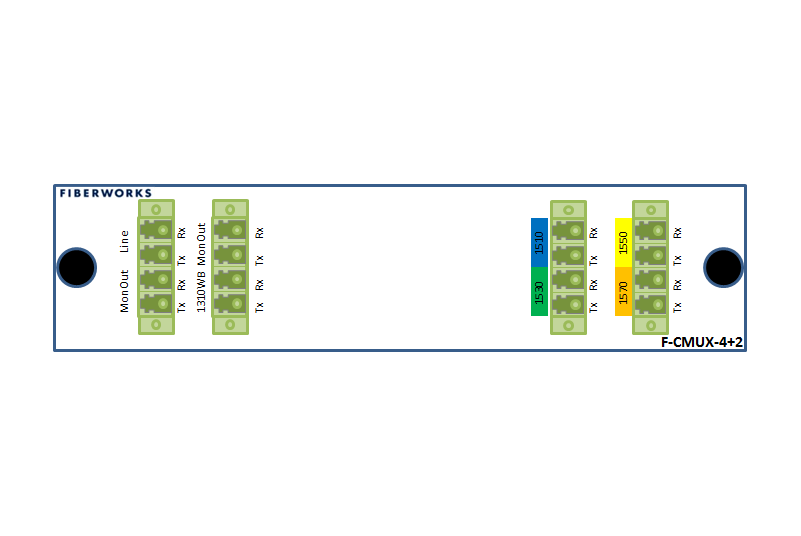

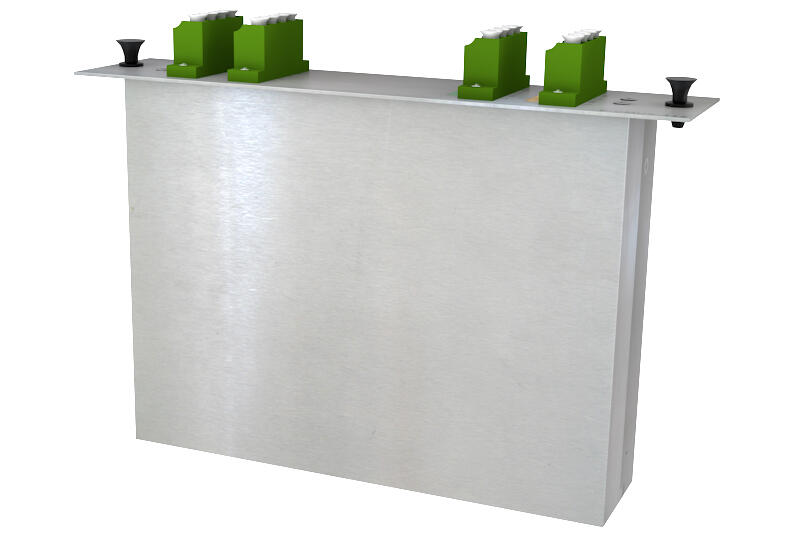

Fiberworks 4+2 ch. CWDM CATV Mux+Demux

4 CWDM ch + 1310 & 1550 nm WB, Mon.ports

Product nr: F-CMUX-4+2-4761-MLA
Product
DescriptionTechnical infoAccessories
Description
APPLICATIONS
- CATV networks
- CWDM in combination with legacy 1310 and/or 1550 nm traffic
- CWDM in combination with active DWDM including OSC.

FEATURES
- Coarse WDM in compliance with ITU-T G.694.2

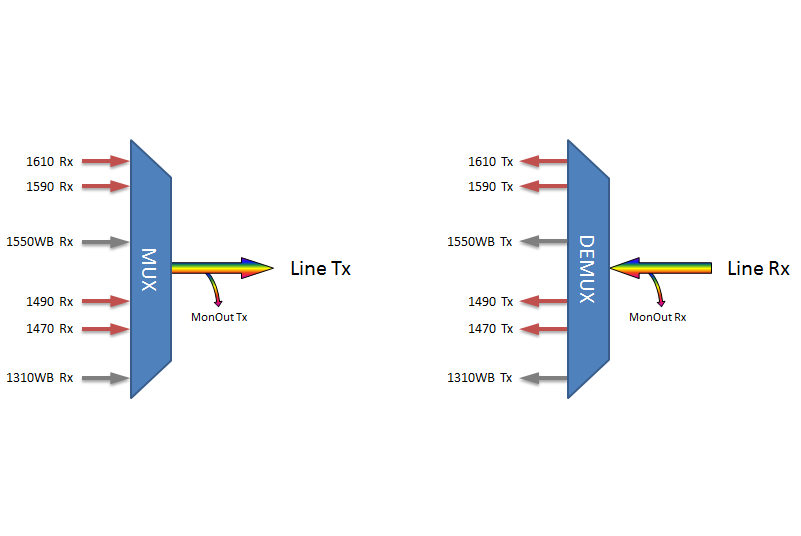

- CWDM channels 1470nm, 1490nm, 1590nm, 1610nm
- With 1310nm and 1550nm wideband ports
- Two 2% monitor ports for easy troubleshooting
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
- LC/APC connectors

Technical info

Product information

Form factor Fiberworks
Line fiber Double (fiber pair, mux+demux)
Channel count 4
OADM No, mux/demux
Expansion port Yes, 1310WB + 1550WB
Monitor port Yes (1%)
Connector type Angled (APC, for CATV)
Connector LC/APC
