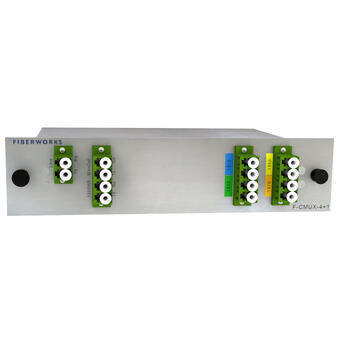

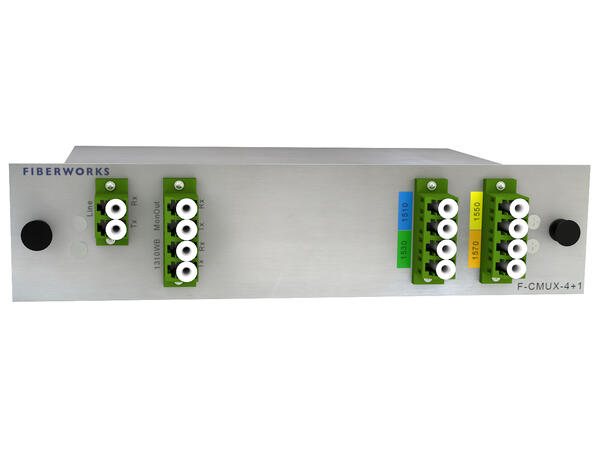

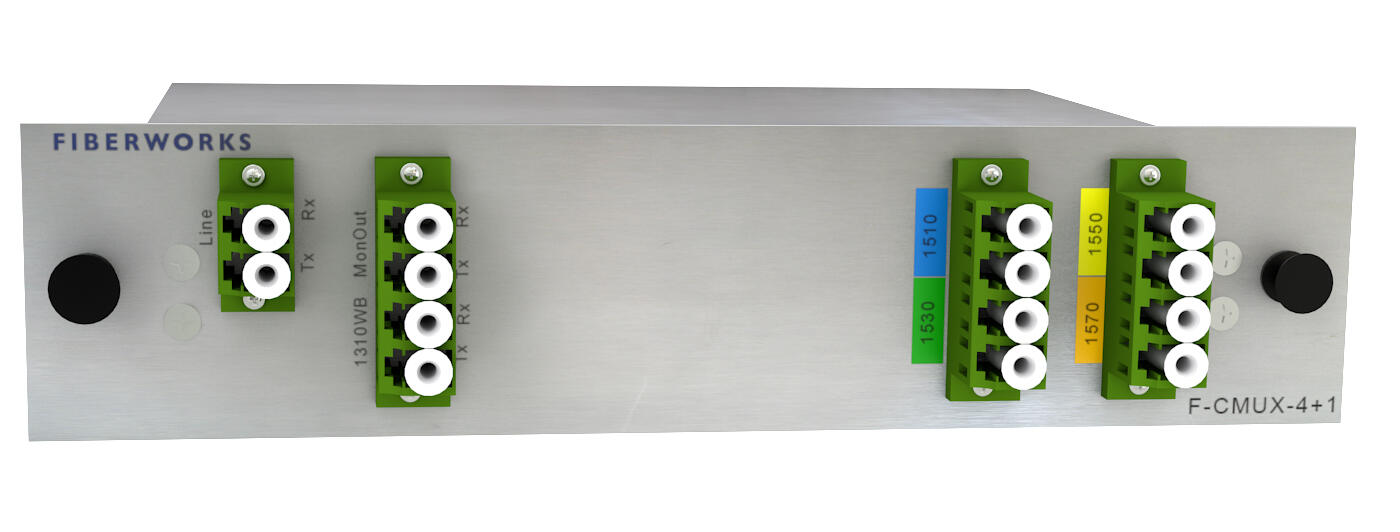

Fiberworks 4+1 CATV CWDM Mux+Demux, APC

C51-C57 + 1310nm/CWDM upgrade, Mon.ports

Product nr: F-CMUX-4+1-5157-MLA
Product
DescriptionTechnical infoAccessoriesAlternatives
Description
FEATURES

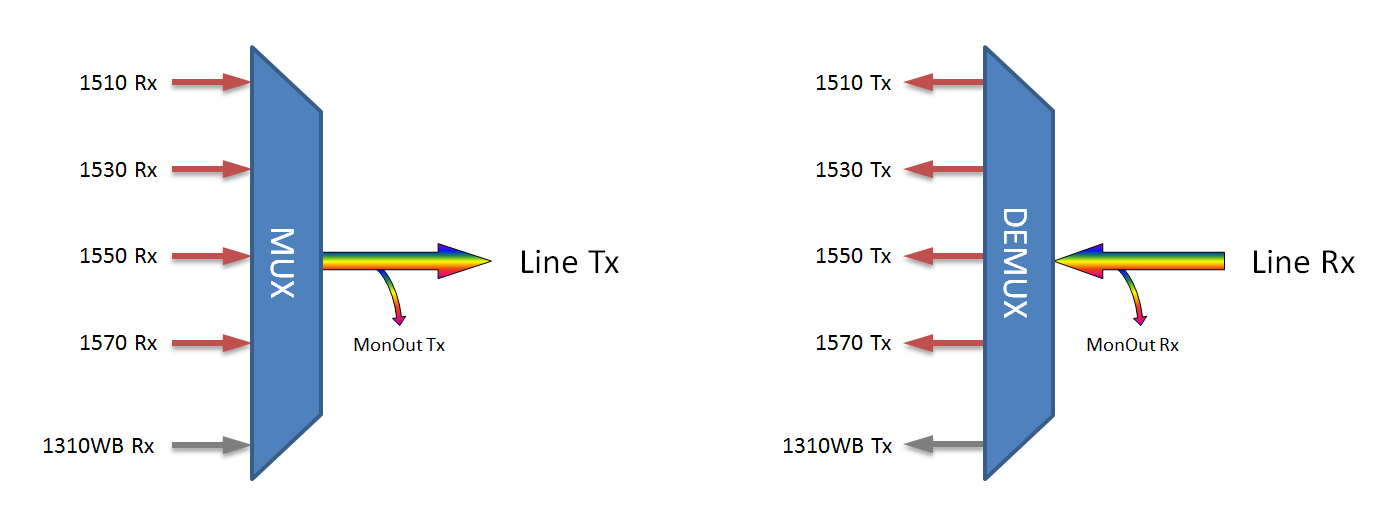

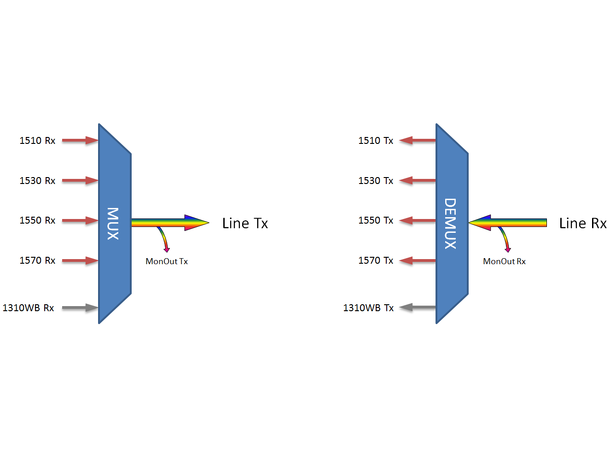

- Coarse WDM in compliance with ITU-T G.694.2
- CWDM channels 1510nm, 1530nm, 1550nm, 1570nm
- With 1310nm wideband port
- Two 2% monitor ports for easy troubleshooting
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)

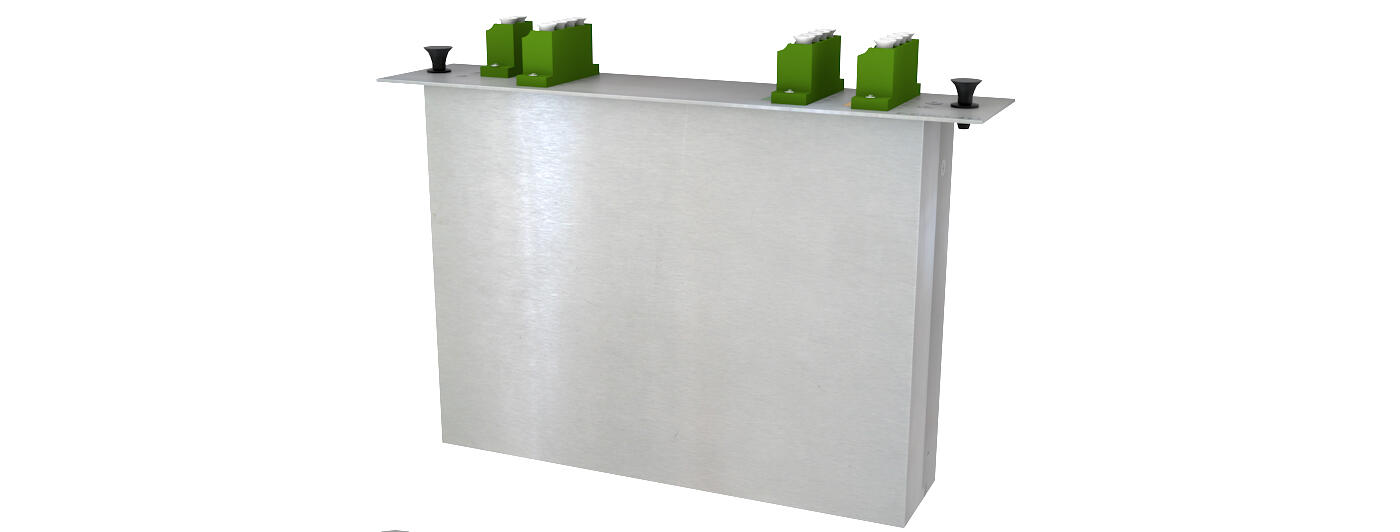

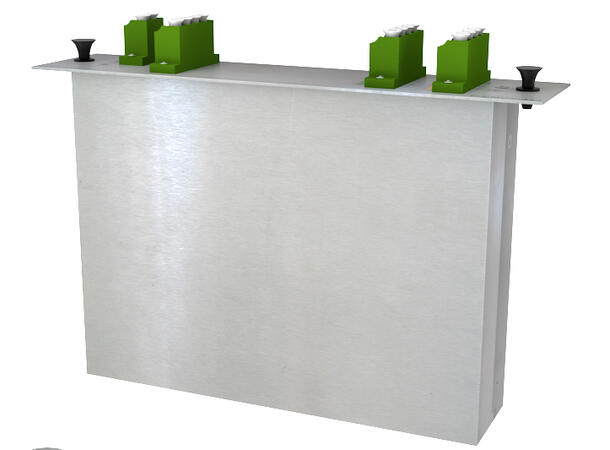

- Two modules fit in 1U in 19" rack

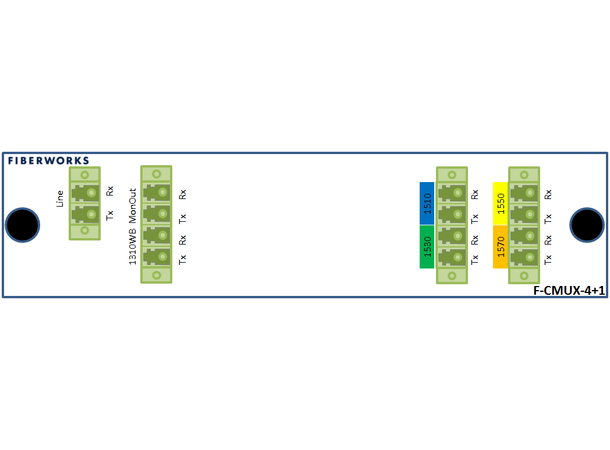

- LC/APC connectors for minimal reflections

Technical info

Product information

Form factor Fiberworks
Line fiber Double (fiber pair, mux+demux)
Channel count 4
OADM No, mux/demux
Expansion port Yes, 1310WB
Monitor port Yes (1%)
Connector type Angled (APC, for CATV)
Connector LC/APC
