xWDM MULTIPLEXERS

Wavelength Division Multiplexing is the technology to choose when you need alot of capacity

divided into several channels on a fiber. It comes in different varietys with different characteristics



WDM is actually frequency division multiplexing (FDM) but referencing the wavelength of light as opposed to the frequency of light. However, since wavelength and frequency have an inverse relationship (shorter wavelength means higher frequency), the WDM and FDM terms actually describe the same technology – light in optical cable used to carry data and communication signals.



How do I pick the right multiplexer?



In the list above each category you can find the type of WDM you seek. We have listed a lot of different criterias, which will help you end up with the product you are looking for.




There are two main flavours of wdm; Coarse Wavelength Division Multiplexing (CWDM) and Dense Wavelength Division Multiplexing (DWDM). They have different numbers of channels and workarea. We have a short introduction here for you, but if you need more information, don't hesitate to contact us.






The different types of multiplexer:



CWDM

CWDM  is often employed in situations where only a few channels are needed and there is no need for distances longer than 70 km. The passive CWDM is an implementation of CWDM that uses no electrical power. It divides the wavelengths by passive optical components like thin film filters. CWDM Mux/Demux is the most commonly used device in passive CWDM system.





DWDM

DWDM technology is used for long haul optical transmissions. It can be divided into two different versions: an active solution and a passive solution. The active solution is a good fit for applications involving more than 32 links over the same fiber. Passive DWDM solutions have fewer active elements, in other words, the solutions have higher reliability and less latency. In a passive DWDM network, the line functions only due to the use of optical transceiver. Passive DWDM systems allow to arrange a high speed system with high channel capacity, but the transmission distance and management are limited. The major applications of passive DWDM system are metro networks and high speed communication lines





Download product overview for CWDM

Download product overview for DWDM

Fiberworks 8+1 ch. CWDM Mux+Demux C47-C61 + 1310nm/CWDM upgrade, Mon.ports
Fiberworks AS FW
Fiberworks 8+1 ch. CWDM Mux+DemuxC47-C61 + 1310nm/CWDM upgrade, Mon.ports

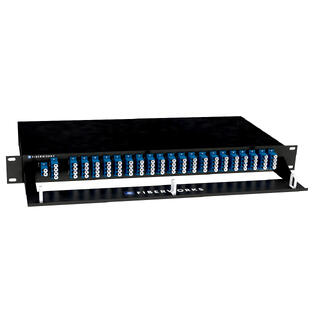

Fiberworks 40+1 DWDM Mux+Demux 19" 1RU ITU ch. 21-60, 1310WB, Monitor, LC/UPC
Fiberworks AS FW
Fiberworks 40+1 DWDM Mux+Demux 19" 1RUITU ch. 21-60, 1310WB, Monitor, LC/UPC
Fiberworks 16+1 ch. DWDM Mux+Demux, Low ITU ch. 21-36, 100 GHz, Upgrade & Mon.
Fiberworks AS FW
Fiberworks 16+1 ch. DWDM Mux+Demux, LowITU ch. 21-36, 100 GHz, Upgrade & Mon.
Fiberworks 1 ch. CWDM OADM 3-port filter for splicing, 900 µm
Fiberworks AS FW
Fiberworks 1 ch. CWDM OADM3-port filter for splicing, 900 µm
Fiberworks 18 ch. CWDM Mux+Demux C27-C61, Monitor ports
Fiberworks AS FW
Fiberworks 18 ch. CWDM Mux+DemuxC27-C61, Monitor ports
Fiberworks 18 ch. CWDM Mux+Demux, LGX2 C27-C61, Monitor ports
Fiberworks AS FW
Fiberworks 18 ch. CWDM Mux+Demux, LGX2C27-C61, Monitor ports
Fiberworks 2+1 ch. CWDM OADM w/mon.ports East+west, LC
Fiberworks AS FW
Fiberworks 2+1 ch. CWDM OADM w/mon.portsEast+west, LC
Fiberworks 4 ch multimode CWDM Mux+Demux C51-C57, 50 µm OM2
Fiberworks AS FW
Fiberworks 4 ch multimode CWDM Mux+DemuxC51-C57, 50 µm OM2
Fiberworks 4 ch. CWDM BiDi Mux/Demux Single fiber, Mon. port, LC/UPC, A-side
Fiberworks AS FW
Fiberworks 4 ch. CWDM BiDi Mux/DemuxSingle fiber, Mon. port, LC/UPC, A-side
Fiberworks 4 ch. DWDM Mux+Demux for C57 ITU ch. 14-17, 100GHz, Monitor ports, LC
Fiberworks AS FW
Fiberworks 4 ch. DWDM Mux+Demux for C57ITU ch. 14-17, 100GHz, Monitor ports, LC
Fiberworks 4+1 ch. CWDM Mux+Demux C51-C57 + 1310nm/CWDM upgrade, Mon.ports
Fiberworks AS FW
Fiberworks 4+1 ch. CWDM Mux+DemuxC51-C57 + 1310nm/CWDM upgrade, Mon.ports
Fiberworks 4+2 ch. CWDM Mux+Demux 4 CWDM ch + 1310 & 1550 nm WB, Mon.ports
Fiberworks AS FW
Fiberworks 4+2 ch. CWDM Mux+Demux4 CWDM ch + 1310 & 1550 nm WB, Mon.ports
Fiberworks 40 ch. DWDM Mux/Demux module ITU ch. 21-60, 100 GHz, AWG, LC/UPC
Fiberworks AS FW
Fiberworks 40 ch. DWDM Mux/Demux moduleITU ch. 21-60, 100 GHz, AWG, LC/UPC
Fiberworks 40+1 DWDM Mux+Demux 19" 1RU ITU ch. 21-60, 1310WB, Monitor, LC/UPC
Fiberworks AS FW
Fiberworks 40+1 DWDM Mux+Demux 19" 1RUITU ch. 21-60, 1310WB, Monitor, LC/UPC
Fiberworks 4ch. CWDM BiDi Mux/Demux LGX2 Single fiber, LC/UPC, A-side
Fiberworks AS FW
Fiberworks 4ch. CWDM BiDi Mux/Demux LGX2Single fiber, LC/UPC, A-side
Fiberworks 8 ch. CWDM BiDi Mux/Demux Single fiber, Mon. port, LC/UPC, A-side
Fiberworks AS FW
Fiberworks 8 ch. CWDM BiDi Mux/DemuxSingle fiber, Mon. port, LC/UPC, A-side
Fiberworks 8 ch. CWDM Mux+Demux Low band C29-C43, LC/UPC
Fiberworks AS FW
Fiberworks 8 ch. CWDM Mux+DemuxLow band C29-C43, LC/UPC
Fiberworks 8 ch. CWDM Mux+Demux, LGX2 Low band C27-C37 & C43-C45, LC/UPC
Fiberworks AS FW
Fiberworks 8 ch. CWDM Mux+Demux, LGX2Low band C27-C37 & C43-C45, LC/UPC
Fiberworks 8 ch. CWDM Mux+Demux, LGX3 Low band C27-C37 & C43-C45, LC/UPC
Fiberworks AS FW
Fiberworks 8 ch. CWDM Mux+Demux, LGX3Low band C27-C37 & C43-C45, LC/UPC
Fiberworks 8 ch. DWDM Mux+Demux for C53 ITU ch. 52-59, 100GHz, Monitor ports, LC
Fiberworks AS FW
Fiberworks 8 ch. DWDM Mux+Demux for C53ITU ch. 52-59, 100GHz, Monitor ports, LC
Fiberworks 8 ch. DWDM Mux+Demux for C55 ITU ch. 25-32, 100GHz, Monitor ports, LC
Fiberworks AS FW
Fiberworks 8 ch. DWDM Mux+Demux for C55ITU ch. 25-32, 100GHz, Monitor ports, LC
Fiberworks 8+1 ch. CWDM Mux+Demux C47-C61 + 1310nm/CWDM upgrade, Mon.ports
Fiberworks AS FW
Fiberworks 8+1 ch. CWDM Mux+DemuxC47-C61 + 1310nm/CWDM upgrade, Mon.ports
Fiberworks 8+1 ch. CWDM Mux+Demux, LGX 3 C47-C61 + 1310nm/CWDM upgrade
Fiberworks AS FW
Fiberworks 8+1 ch. CWDM Mux+Demux, LGX 3C47-C61 + 1310nm/CWDM upgrade
Fiberworks 8+1 ch. CWDM Mux+Demux, LGX2 C47-C61 + 1310nm/CWDM upgrade
Fiberworks AS FW
Fiberworks 8+1 ch. CWDM Mux+Demux, LGX2C47-C61 + 1310nm/CWDM upgrade
Fiberworks compact 8 ch. CWDM Mux/Demux C27-C37 & C43-C45, 250µm pigtails
Fiberworks AS FW
Fiberworks compact 8 ch. CWDM Mux/DemuxC27-C37 & C43-C45, 250µm pigtails
Fiberworks compact 8+1 CWDM Mux/Demux C47-C61 + 1310WB, 250µm pigtails
Fiberworks AS FW
Fiberworks compact 8+1 CWDM Mux/DemuxC47-C61 + 1310WB, 250µm pigtails
Fiberworks Wideband WDM Mux+Demux 1310nm/1550nm, Monitor ports, LC
Fiberworks AS FW
Fiberworks Wideband WDM Mux+Demux1310nm/1550nm, Monitor ports, LC
