You are here: Home   >   Products   >   Transceivers   >   SFP28   >   25 Gigabit Ethernet CWDM   >   SFP28, 25GBASE-LR, DDM, 40km

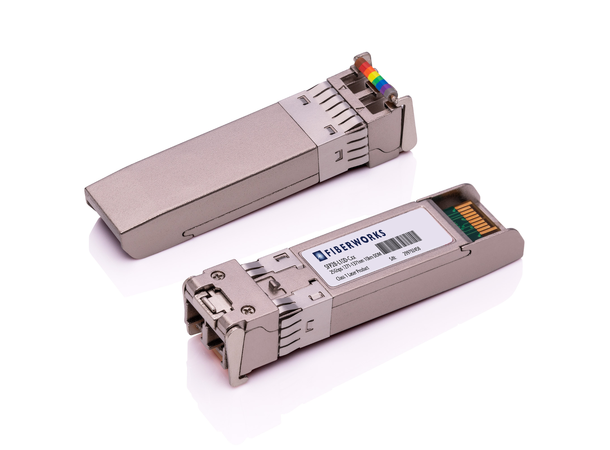

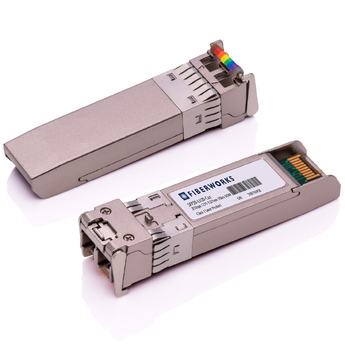

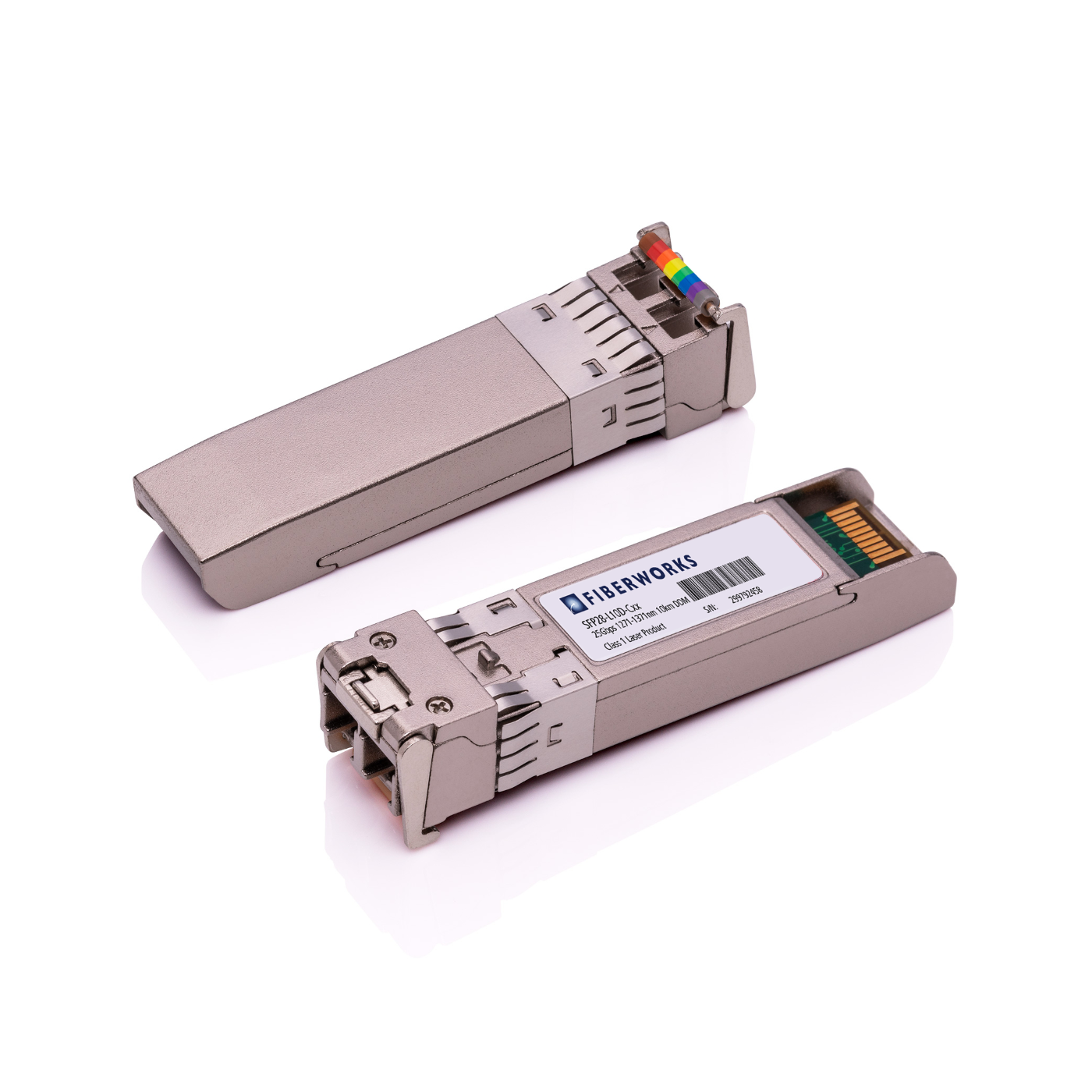

SFP28, 25GBASE-LR, DDM, 40km CWDM 1271-1331nm, 19dB, SM

SFP28, 25GBASE-LR, DDM, 40km

CWDM 1271-1331nm, 19dB, SM

Product nr: SFP28-L40D-CxxL
Compatibility
CWDM Wavelength
Show variants as list
Product
DescriptionTechnical infoAccessories
Description
APPLICATIONS
• 25GBASE-ER
• CWDM Systems

FEATURES
• Up to 40km transmission on SM fiber with FEC (30km witout FEC)
• Hot-Pluggable SFP footprint
• LC Optical interface
• SFP28 MSA compatible
• Digital Diagnostics Monitoring interface
• Single 3.3 V power supply
• Power dissipation < 2 W
• RoHS-6 compliant (lead-free)
• Case operating temperature: 0°C to 70°C
Technical info

Product information

Form factor SFP28
Protocol / bit rate 25 Gigabit Ethernet
Media type Singlemode
Reach (dB) 19
Reach (km) 40
Wavelength (nm) CWDM
DDM Yes
Connector LC Duplex
