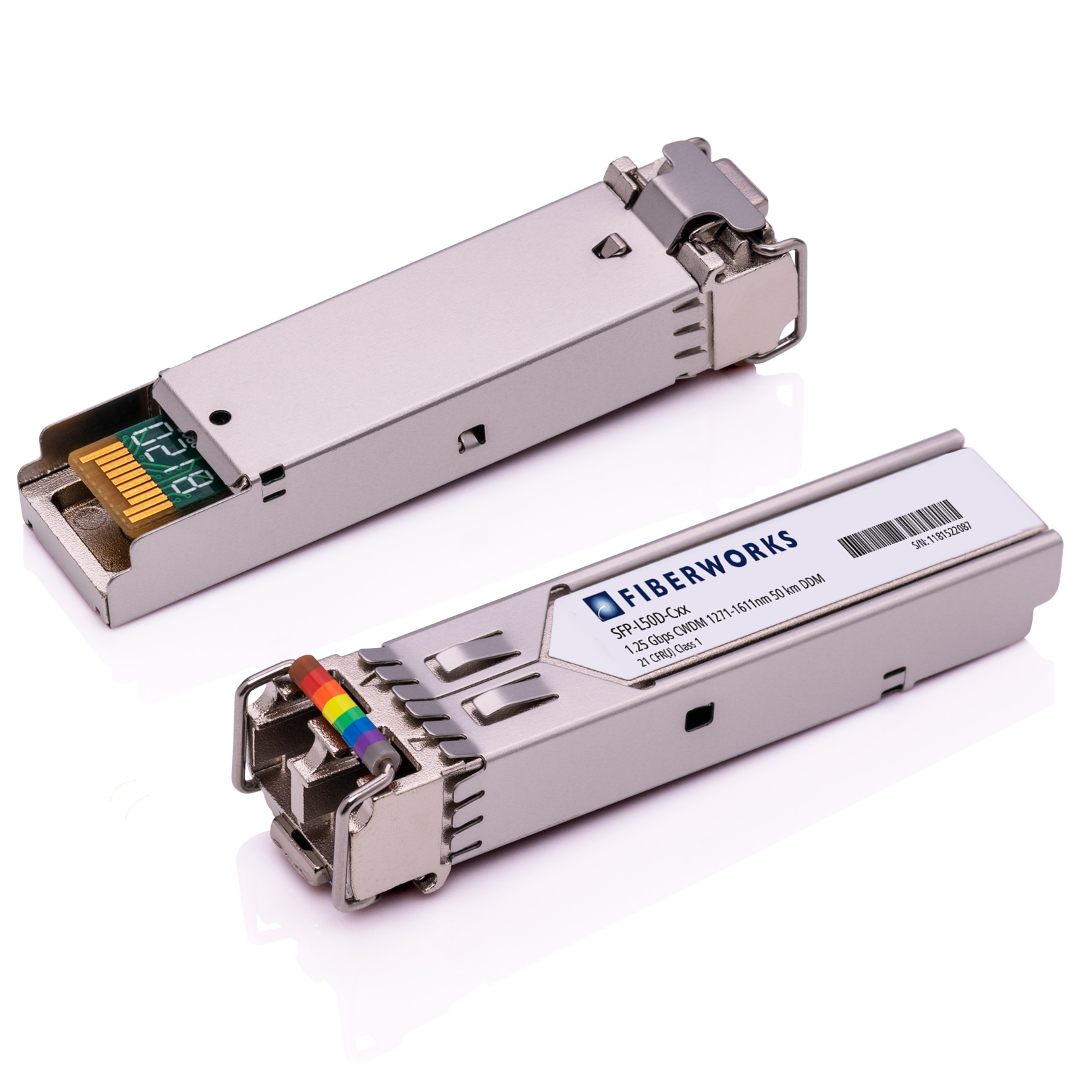

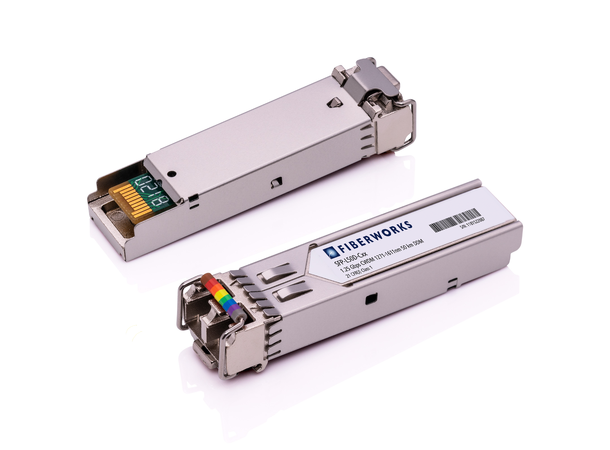

SFP, 1.25 Gbps GigE, DDM, 50km CWDM 1271nm-1611nm, 19dB, SM/MM
DescriptionTechnical info
Description

The SFP-1000Base-Cxx optical transceiver family is fully compliant with the SFP Multi-Source Agreement (MSA). It meets the requirements of IEEE 802.3 Gigabit Ethernet standard and ANSI Fibre Channel specifications, and is very suitable for interconnections in Gigabit Ethernet and Fibre Channel environments. The modules are hot pluggable and digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472.

The transceivers are high performance, cost effective modules supporting dual data-rates of 1.25 Gb/s and 1.0625 Gb/s and can operate over transmission distances up to 80 km on 9/125µm SM fiber. All transceivers have been tested according to European and American product safety and electromagnetic compatibility regulations.

CWDM modules operate at nominal Coarse Wavelength Division Multiplexing (CWDM) wavelengths. There are eighteen center wavelengths available from 1271 nm to 1611 nm, with each step being 20 nm. The CWDM characteristics are fully compliant to the wavelength parameters specified in ITU standards G.694.2 and G.695.


APPLICATIONS
• 1000Base Ethernet
• Fibre Channel
• CWDM Systems

FEATURES
• 18 CWDM wavelengths (λ): 1271 nm to 1611 nm
• Up to 50 km transmission with PIN receiver (19 dB)
• Hot-Pluggable SFP footprint LC Optical Transceiver
• Small Form-Factor Pluggable (SFP) MSA compatible
• SFF-8472 Digital Diagnostic Function
• Fully compliant to ITU G.694.2 & G.695
• operating temperature 0ºC to 70ºC

Technical info

Product information

Form factor SFP
Protocol / bit rate
  • Gigabit Ethernet
  • CPRI/OBSAI 1.228 - 3.072 Gbps
Media type
  • Singlemode
  • Multimode
Reach (dB) 19
Reach (km) 50
Wavelength (nm) CWDM
Laser Type DFB
Detector type PIN
Line Modulation NRZ
Tx power min. [dBm] -5
Tx power max. [dBm] +5
Rx sensitity [dBm] -24
Rx overload limit [dBm] -3
DDM Yes
Connector LC Duplex
Operating temperature range 0°C - +70°C (Standard)
Temperature range, storage -40°C - +85°C
Customs classification codes
  • ECCN: 5A991
  • HS: 8517.62.0090
