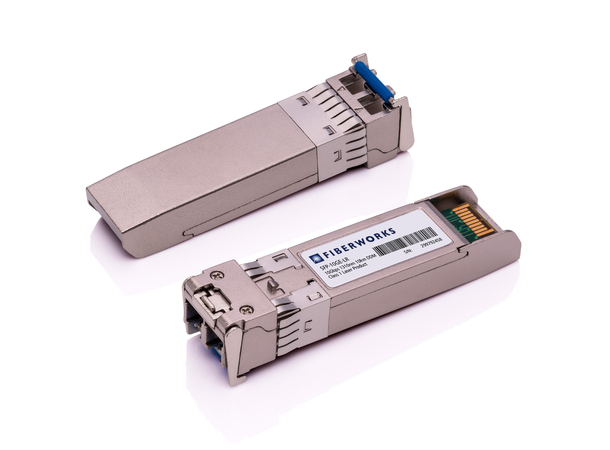

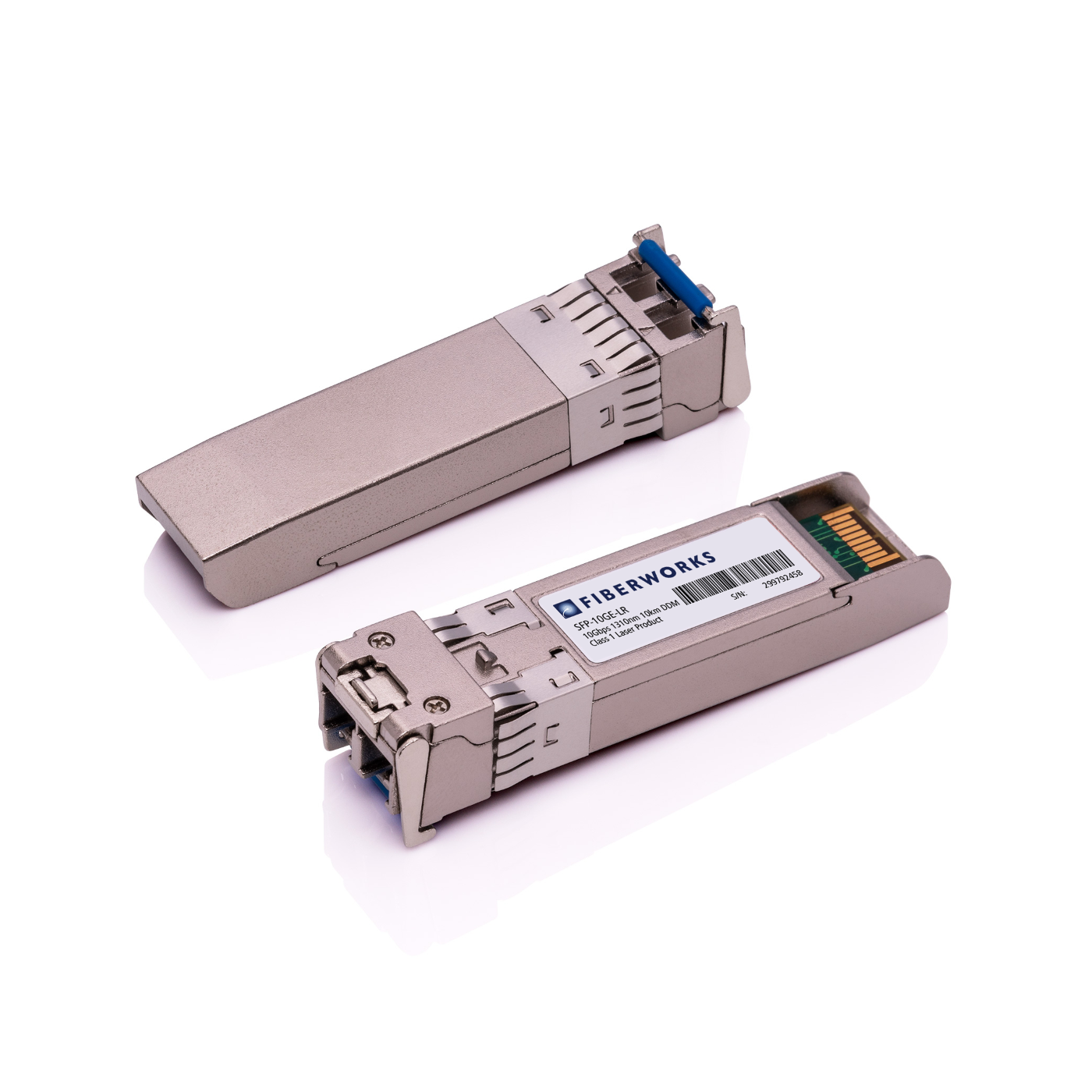

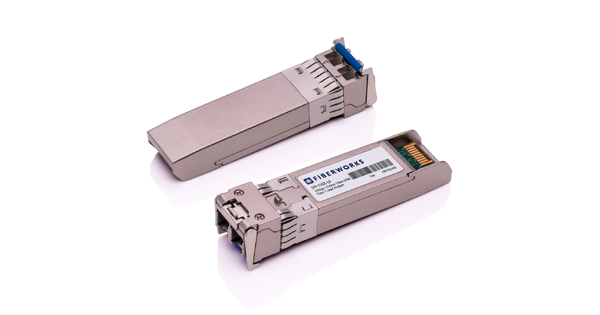

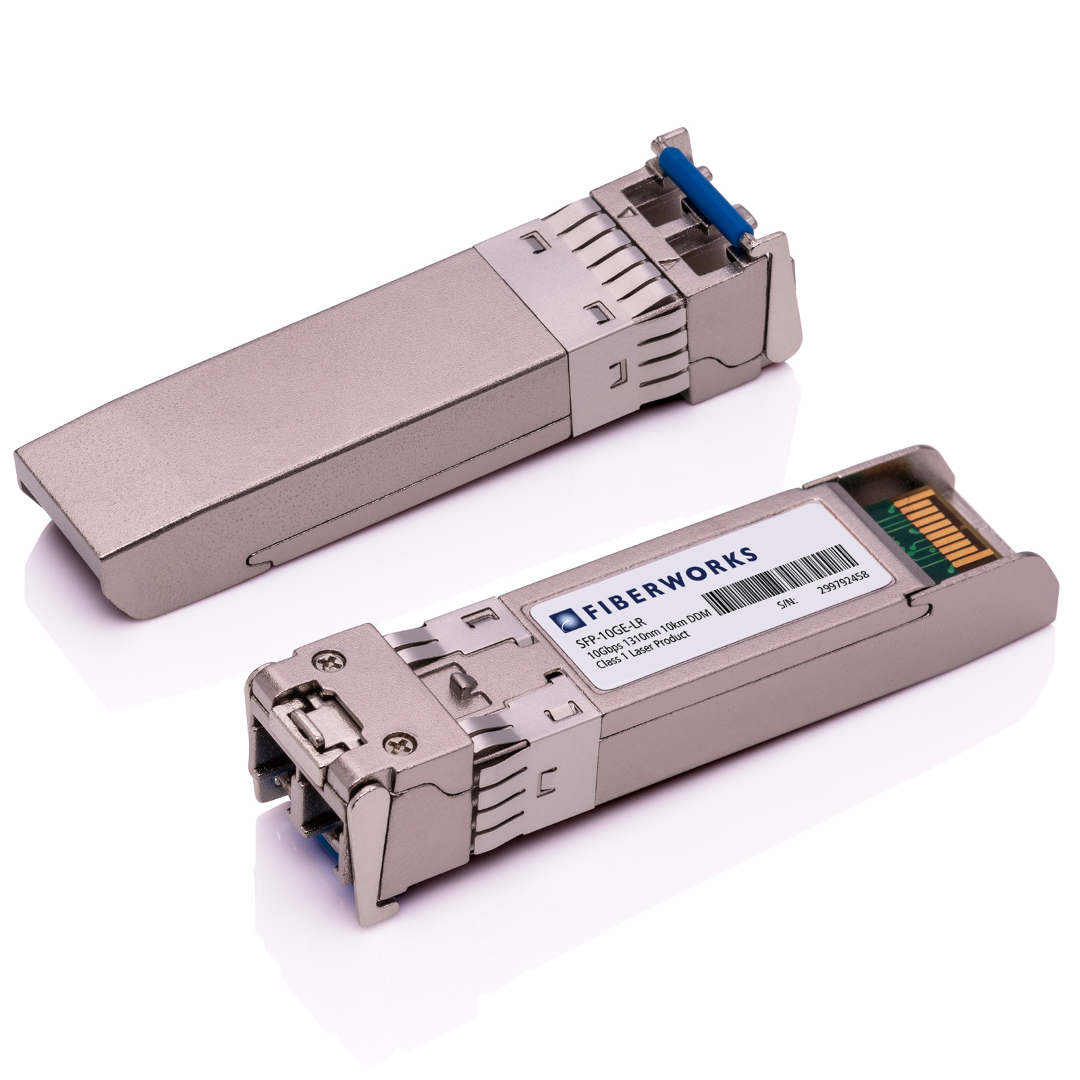

SFP-10GE-LR Fiberworks AS SFP+, 10G Ethernet, DDM, 10km 1310nm, 9dB, SM
SFP+, 10G Ethernet, DDM, 10km 1310nm, 9dB, SM

SFP+, 10G Ethernet, DDM, 10km

1310nm, 9dB, SM

Product nr: SFP-10GE-LR
Show variants as list
Product
DescriptionTechnical infoAccessories
Description

The SFP-10GE transceiver family are small form factor pluggable modules for bi-directional serial optical data communications such as 10GBASE Ethernet. The modules are compliant to the SFP+ MSA and are hot pluggable. Digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. The modules meet the requirements of the IEEE 802.3 10GBASE Ethernet standards and are suitable for interconnections in 10G Ethernet environments.

The transceivers can also be used for a wide range of other protocols with bitrates between 600 Mbps and 11.1 Gbps.


APPLICATIONS
• 10GBASE-LR

FEATURES
• 10 km transmission at 1310 nm
• 9 dB link budget
• Hot-Pluggable SFP+ footprint LC Optical Transceiver
• Small Form-Factor Pluggable (SFP) MSA compatible
• SFF-8472 Digital Diagnostics Monitoring


Technical info

Product information

Form factor SFP+
Protocol / bit rate
  • 10 Gigabit Ethernet
  • 10G Fibre Channel
  • SDH STM-64
  • OTN/G.709/G.sup43 OTU2(e)
  • CPRI/OBSAI 1.228 - 3.072 Gbps
  • CPRI/OBSAI 4.915 - 9.830 Gbps
Media type Singlemode
Reach (dB) 9
Reach (km) 10
Wavelength (nm) 1310
Laser Type DFB
Detector type PIN
Line Modulation NRZ
Tx power min. [dBm] -6
Tx power max. [dBm] +1
Rx sensitity [dBm] -15
Rx overload limit [dBm] +1
DDM Yes
Connector LC Duplex
Safety class Laser Class 1
Operating temperature range 0°C - +70°C (Standard)
Temperature range, storage -40°C - +85°C
Customs classification codes
  • ECCN: 5A991
  • HS: 8517.62.0090
