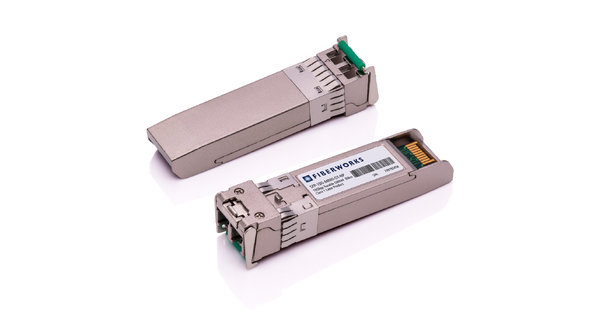

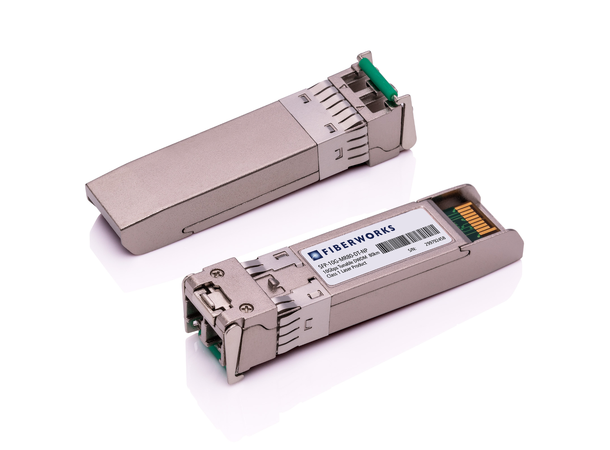

SFP+, 9.9-11.3G, 80km, Advanced Tunable DWDM 50GHz ITU, 23dB, SM

SFP+, 9.9-11.3G, 80km, Advanced Tunable

DWDM 50GHz ITU, 23dB, SM

Product nr: SFP-10G-MR80-DT-NP
Product
DescriptionTechnical infoAccessoriesAlternatives
Description

APPLICATIONS
• Supports 80km link distances
• 10Gb/s Gigabit Ethernet 10GBASE-ER/EW
• 10G Fibre Channel
• OTU2 with FEC
• Dispersion limited or noise limited
• High/low OSNR Metro
• Link with or without amplification

FEATURES
• ITU-T C-band 50 GHz spacing Tunable DWDM SFP+ Transceiver
• Adjustable channel plan within 191.35 - 196.1 THz
• Selected channel can be copied into standard EEPROM wavelength data
• Data rate 9.95- 11.3 Gbit/s
• Support 80 km link distances
• Negative chirp transmitter with ILMZ (Integrated Laser Mach Zehnder) TOSA
• Tx dither for use in high-power links
• APD receiver with limiting amplifier
• Adjustable Rx determination threshold value
• Low power consumption: < 1.5 W
• Positive power supply lines: 3.3 V
• Operating case temperature range: 0 to 70 °C
• RoHS 6 compliant
Technical info

Product information

Form factor SFP+
Protocol / bit rate
  • 10 Gigabit Ethernet
  • SDH STM-64
  • OTN/G.709/G.sup43 OTU2(e)
Media type Singlemode
Reach (dB) 23
Reach (km) 80
Wavelength (nm) DWDM
Detector type APD
DDM Yes
Connector LC Duplex
Customs classification codes
  • ECCN: 5A991
  • HS: 8517.62.0090
