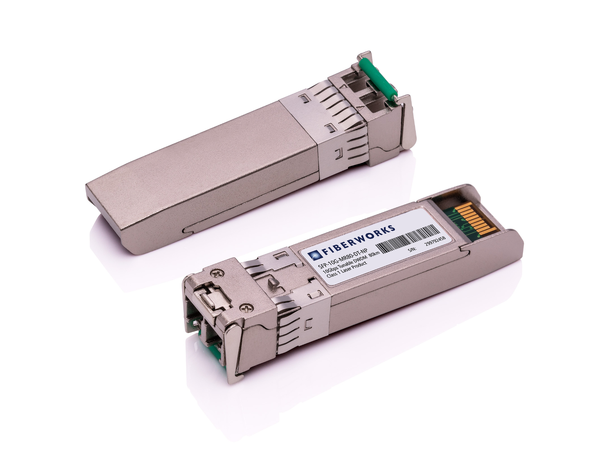

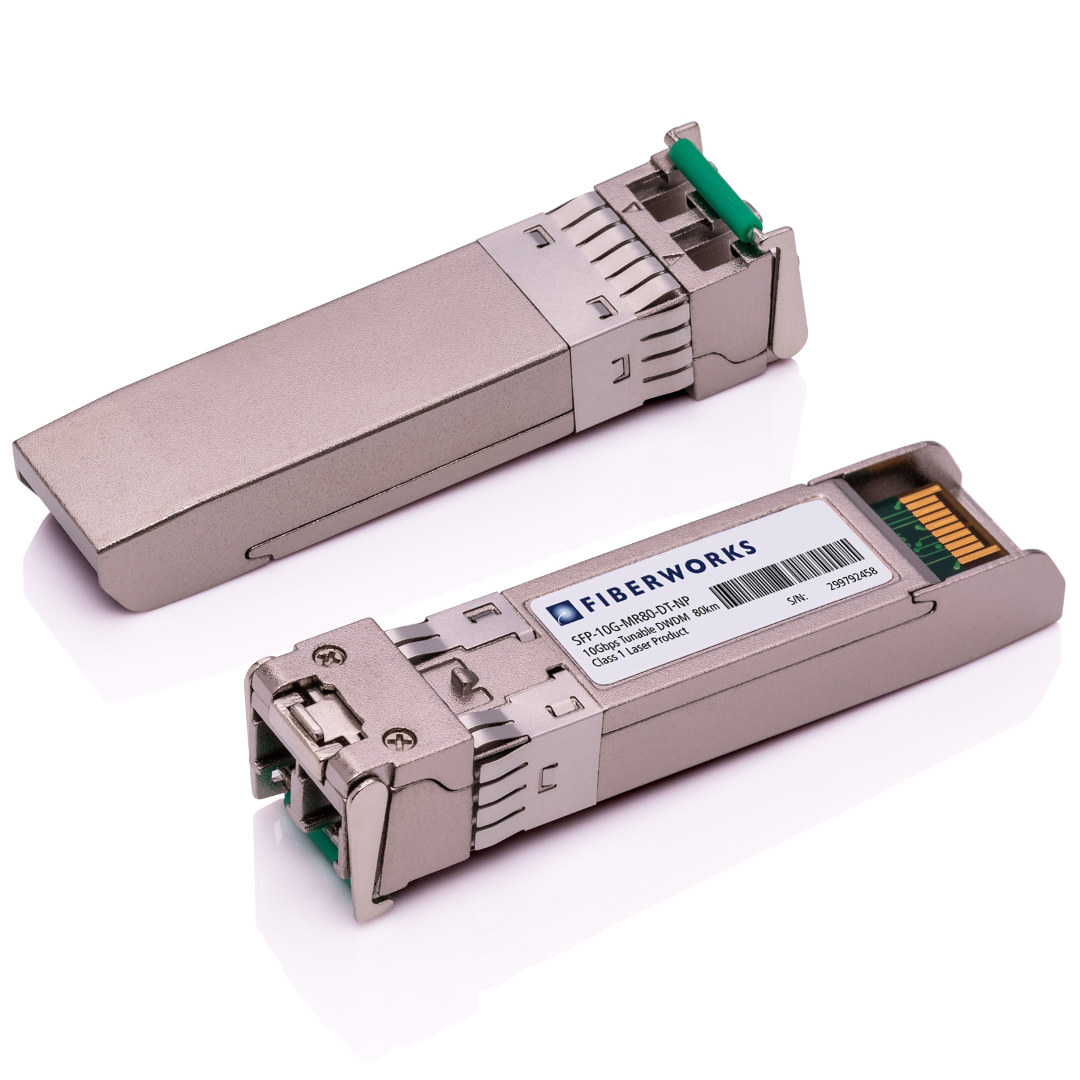

This Fiberworks 10 Gigabit Small Form Factor Pluggable (SFP+) transceiver is compliant with the current SFP Multi-Source Agreement (MSA) specification, and simultaneously comply with 10 Gigabit Ethernet 10GBASE-ZR/ZW, STM-64 and 10G Fibre Channel, both with and without FEC.
The transceiver consists of two sections: The transmitter section incorporates a C-band tunable negative-chirp laser and wavelength/frequency tuning is automatic in accordance with SFF-8690. The receiver section consists of an APD receiver with a limiting amplifier. For optimum system performance in noise loaded applications, support is provided for external control of the receiver decision threshold.
Tunable DWDM Transceivere informasjon
APPLICATIONS
• Supports 80km link distances
• 1Gb/s or 10Gb/s Gigabit Ethernet
• 10G Fibre Channel
• OTU1/OTU2 with FEC
• Dispersion limited or noise limited
• High/low OSNR Metro
• Link with or without amplification
FEATURES
• ITU-T C-band 100 GHz spacing Tunable DWDM SFP+ Transceiver
• Auto-tuning within 191.4 - 196.1 THz
• Data rate 1.2 - 11.3 Gbit/s
• Support 80 km link distances
• Negative chirp transmitter with ILMZ (Integrated Laser Mach Zehnder) TOSA
• Tx dither for use in high-power links
• APD receiver with limiting amplifier
• Adjustable Rx determination threshold value
• Low power consumption: < 1.5 W
• Positive power supply lines: 3.3 V
• Operating case temperature range: -40 to +85 °C
• RoHS 6 compliant
