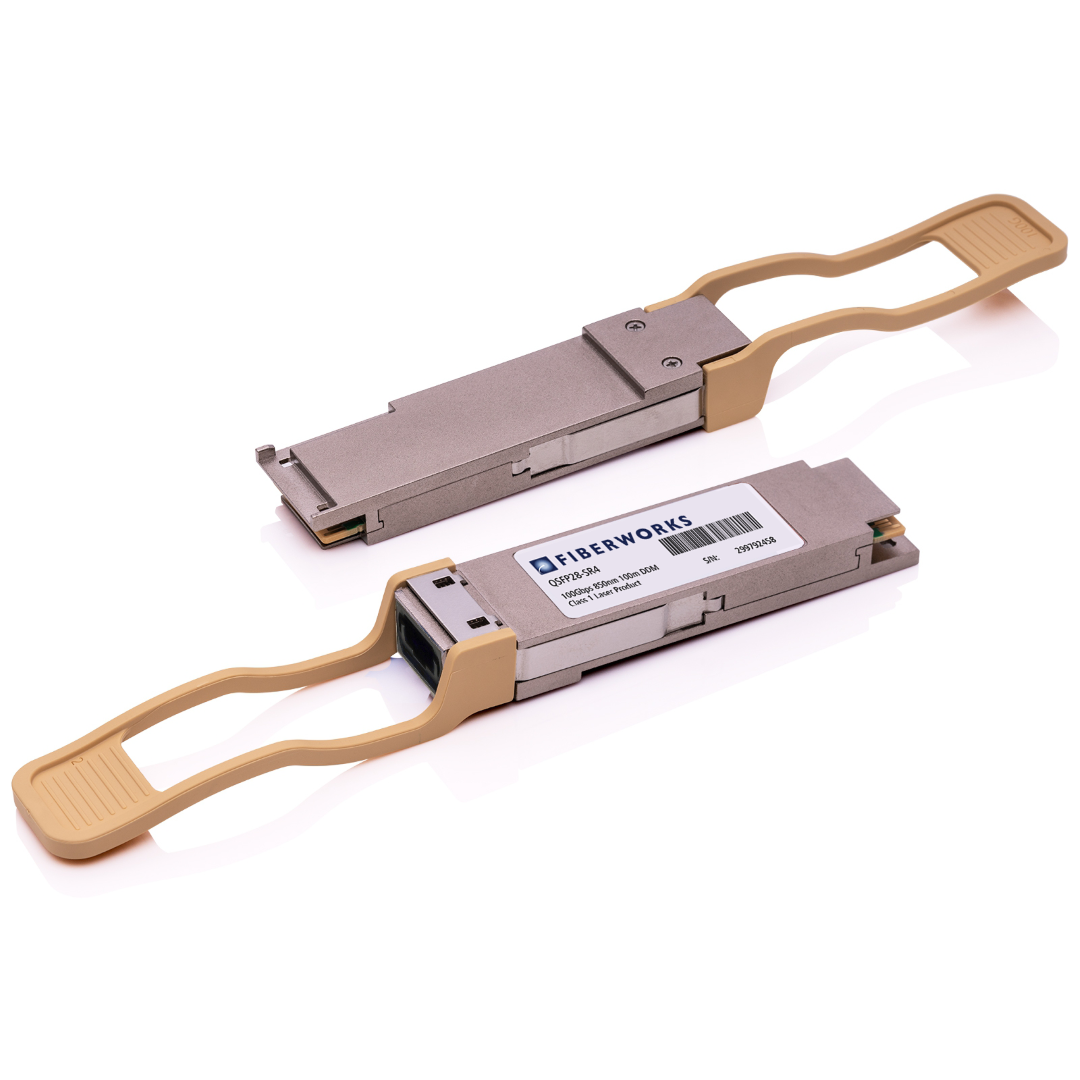

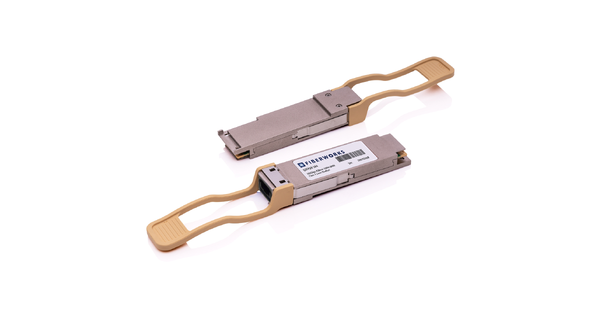

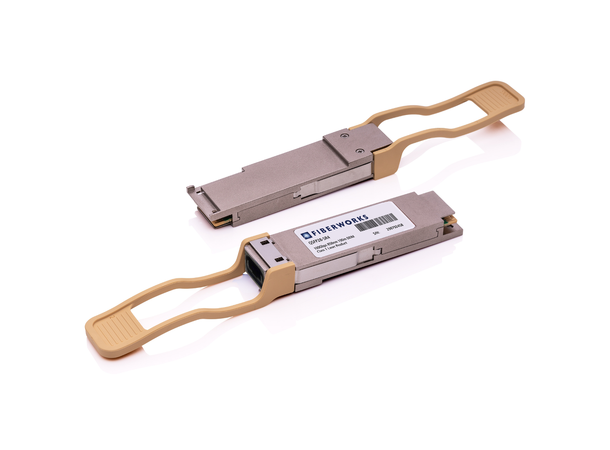

QSFP28, 100GBASE-SR4, 4x25.8 Gbps, 100m 850nm, 2dB, MM, MPO8

QSFP28, 100GBASE-SR4, 4x25.8 Gbps, 100m

850nm, 2dB, MM, MPO8

Product nr: QSFP28-SR4
Product
DescriptionTechnical infoAccessories
Description

The QSFP28 SR4 transceiver is a 100 Gbit/s pluggable module for bi-directional serial optical data communications such as 100GBASE Ethernet. The transceiver operates with four parallel data streams of 25.78 Gbps in order to provide an aggregated signaling rate of 103.125 Gbps. The module has an MPO12 male connector and uses four fiber pairs to create the four data lanes.

The module is fully compliant with all QSFP28 related MSA’s described in SFF-8665 and Digital Diagnostic functions are available through an I2C interface. It complies with IEEE 802.3 and 100Gbase-SR4.


APPLICATIONS
• 100G Ethernet
• Data Center and LAN
• Infiniband QDR
• Fibre Channel

FEATURES
• Compliant with 100Gbase-SR4
• Single MPO receptacle
• Uses 4 parallell MM fiber pairs
• Up to 27.952 Gbps Data rate per wavelength
• Up to 111.8 Gbps line rate
• Up to 100m transmission on OM4 multimode fiber
• Up to 70m transmission on OM3 multimode fiber
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with QSFP28 MSA with LC connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 2 W


Technical info

Product information

Form factor QSFP28
Protocol / bit rate 100 Gigabit Ethernet
Media type Multimode
Reach (dB) 2
Reach (km) 0,100
Wavelength (nm) 850
Laser Type VCSEL
Detector type PIN
Line Modulation NRZ
Tx power min. [dBm] -8
Tx power max. [dBm] +2
Rx sensitity [dBm] -10
Rx overload limit [dBm] +2
DDM Yes
Connector MPO
Operating temperature range 0°C - +70°C (Standard)
Temperature range, storage -40°C - +85°C
Customs classification codes
  • ECCN: 5A991
  • HS: 8517.62.0090
