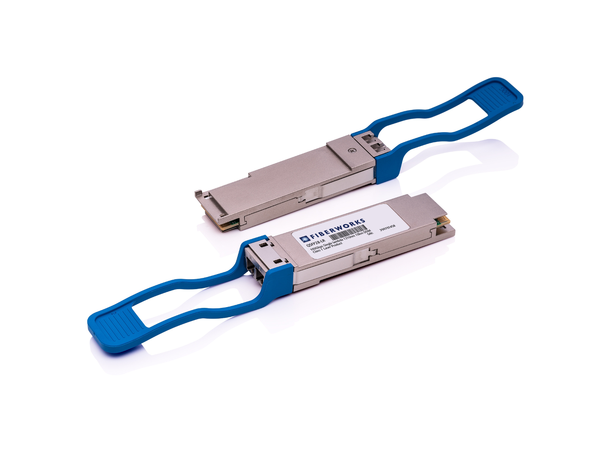

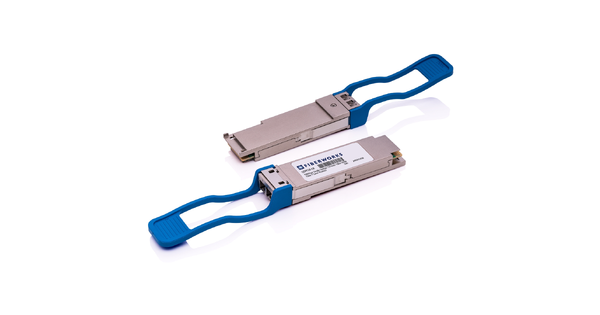

QSFP28, 100GBASE-LR, Single Lambda, 10km 1310nm, 6dB, SM, LC

QSFP28, 100GBASE-LR, Single Lambda, 10km

1310nm, 6dB, SM, LC

Product nr: QSFP28-LR
Product
DescriptionTechnical infoAccessories
Description
APPLICATIONS
• 100G Ethernet
• Data Center and LAN

FEATURES
• Compliant with 100Gbase-LR
• Single Lambda 1310 nm
• Up to 10km transmission on SMF with FEC
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with QSFP28 MSA with LC connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 4.5 W


Technical info

Product information

Form factor QSFP28
Protocol / bit rate 100 Gigabit Ethernet
Media type Singlemode
Reach (dB) 6
Reach (km) 10
Wavelength (nm)
  • 1310
  • Single Lambda 1310nm
DDM Yes
Connector LC Duplex
Customs classification codes
  • ECCN: 5A991
  • HS: 8517.62.0090
