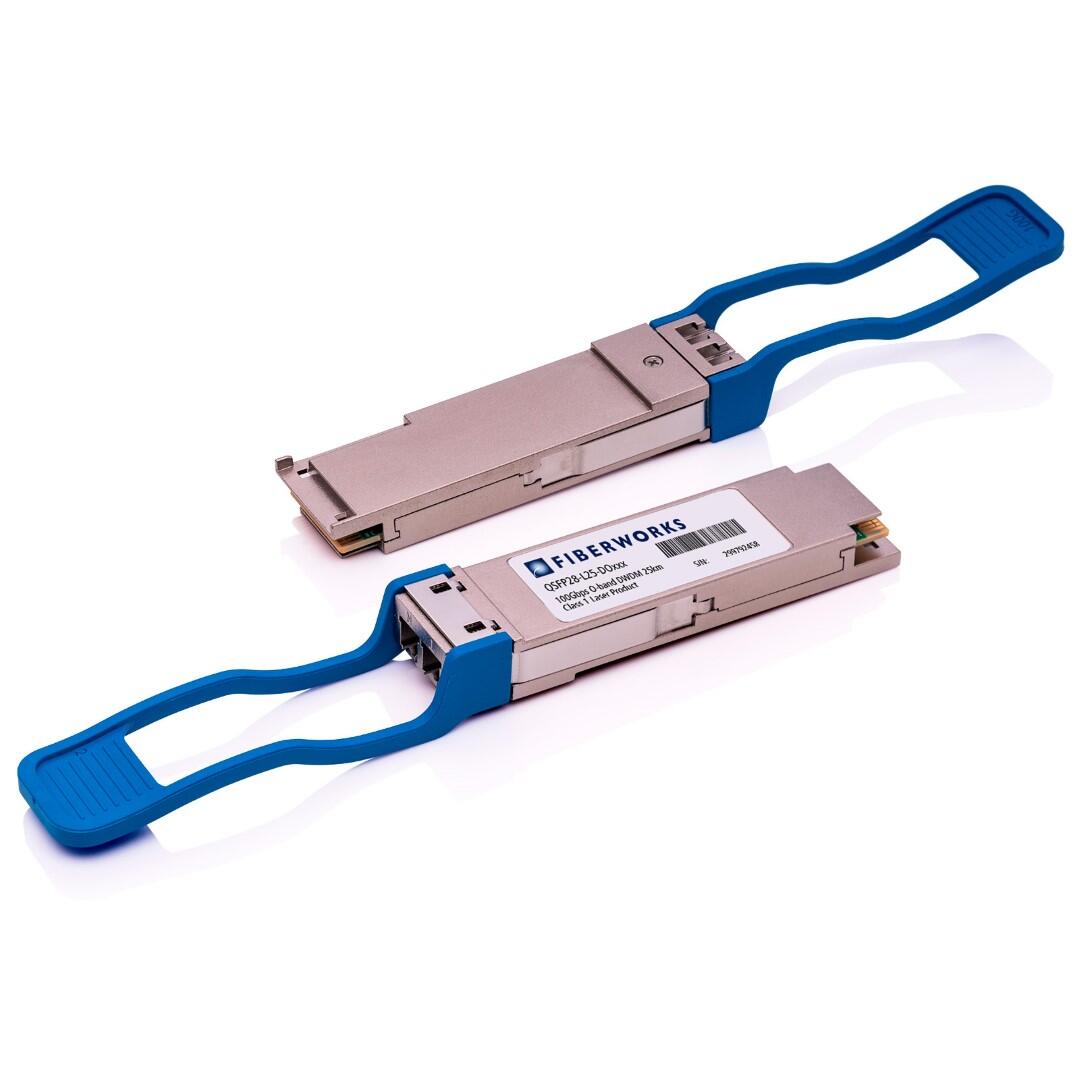

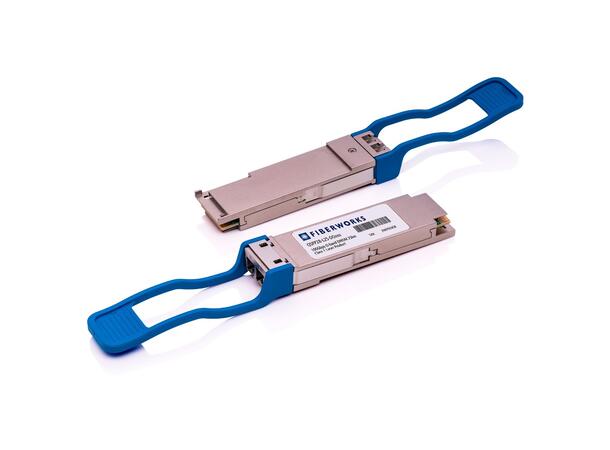

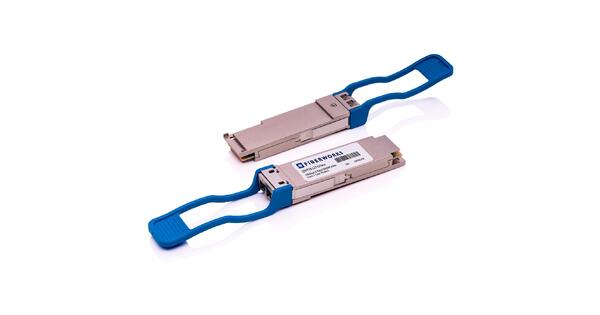

QSFP28, 100GBASE, O-Band DWDM, 25km 15dB, SM, LC

QSFP28, 100GBASE, O-Band DWDM, 25km

15dB, SM, LC

Product nr: QSFP28-L25-DOxxx
Show variants as list
Product
DescriptionTechnical infoAccessories
Description
APPLICATIONS
• 100G Ethernet
• Data Center Interconnect


FEATURES
• Single DWDM wavelength
• Up to 25km transmission on SMF
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with QSFP28 MSA with LC connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 5.5 W


Technical info

Product information

Form factor QSFP28
Protocol / bit rate 100 Gigabit Ethernet
Media type Singlemode
Reach (dB) 15
Reach (km) 25
Wavelength (nm) DWDM
DDM Yes
Connector LC Duplex


Accessories
QSFP28, 100GBASE, DWDM, 25km 1304,58 nm / 229,80 THz, 15dB, Cisco
QSFP28, 100GBASE, DWDM, 25km1304,58 nm / 229,80 THz, 15dB, CiscoProductnbrQSFP28-L25-DO298-C
QSFP28, 100GBASE, DWDM, 25km 1305,72 nm / 229,60 THz, 15dB, Cisco
QSFP28, 100GBASE, DWDM, 25km1305,72 nm / 229,60 THz, 15dB, CiscoProductnbrQSFP28-L25-DO296-C
QSFP28, 100GBASE, DWDM, 25km 1306,85 nm / 229,40 THz, 15dB, Cisco
QSFP28, 100GBASE, DWDM, 25km1306,85 nm / 229,40 THz, 15dB, CiscoProductnbrQSFP28-L25-DO294-C
QSFP28, 100GBASE, DWDM, 25km 1308,00 nm / 229,20 THz, 15dB, Cisco
QSFP28, 100GBASE, DWDM, 25km1308,00 nm / 229,20 THz, 15dB, CiscoProductnbrQSFP28-L25-DO292-C
QSFP28, 100GBASE, DWDM, 25km 1309,14 nm / 229,00 THz, 15dB, Cisco
QSFP28, 100GBASE, DWDM, 25km1309,14 nm / 229,00 THz, 15dB, CiscoProductnbrQSFP28-L25-DO290-C
QSFP28, 100GBASE, DWDM, 25km 1310,28 nm / 228,80 THz, 15dB, Cisco
QSFP28, 100GBASE, DWDM, 25km1310,28 nm / 228,80 THz, 15dB, CiscoProductnbrQSFP28-L25-DO288-C
QSFP28, 100GBASE, DWDM, 25km 1311,43 nm / 228,60 THz, 15dB, Cisco
QSFP28, 100GBASE, DWDM, 25km1311,43 nm / 228,60 THz, 15dB, CiscoProductnbrQSFP28-L25-DO286-C
QSFP28, 100GBASE, DWDM, 25km 1312,58 nm / 228,40 THz, 15dB, Cisco
QSFP28, 100GBASE, DWDM, 25km1312,58 nm / 228,40 THz, 15dB, CiscoProductnbrQSFP28-L25-DO284-C
QSFP28, 100GBASE, DWDM, 25km 1304,58 nm / 229,80THz, 15dB, Fiberworks
QSFP28, 100GBASE, DWDM, 25km1304,58 nm / 229,80THz, 15dB, FiberworksProductnbrQSFP28-L25-DO298-U
QSFP28, 100GBASE, DWDM, 25km 1305,72 nm / 229,60THz, 15dB, Fiberworks
QSFP28, 100GBASE, DWDM, 25km1305,72 nm / 229,60THz, 15dB, FiberworksProductnbrQSFP28-L25-DO296-U
QSFP28, 100GBASE, DWDM, 25km 1306,85 nm / 229,40THz, 15dB, Fiberworks
QSFP28, 100GBASE, DWDM, 25km1306,85 nm / 229,40THz, 15dB, FiberworksProductnbrQSFP28-L25-DO294-U
QSFP28, 100GBASE, DWDM, 25km 1308,00 nm / 229,20THz, 15dB, Fiberworks
QSFP28, 100GBASE, DWDM, 25km1308,00 nm / 229,20THz, 15dB, FiberworksProductnbrQSFP28-L25-DO292-U
QSFP28, 100GBASE, DWDM, 25km 1309,14 nm / 229,00THz, 15dB, Fiberworks
QSFP28, 100GBASE, DWDM, 25km1309,14 nm / 229,00THz, 15dB, FiberworksProductnbrQSFP28-L25-DO290-U
QSFP28, 100GBASE, DWDM, 25km 1310,28 nm / 228,80THz, 15dB, Fiberworks
QSFP28, 100GBASE, DWDM, 25km1310,28 nm / 228,80THz, 15dB, FiberworksProductnbrQSFP28-L25-DO288-U
QSFP28, 100GBASE, DWDM, 25km 1311,43 nm / 228,60THz, 15dB, Fiberworks
QSFP28, 100GBASE, DWDM, 25km1311,43 nm / 228,60THz, 15dB, FiberworksProductnbrQSFP28-L25-DO286-U
QSFP28, 100GBASE, DWDM, 25km 1312,58 nm / 228,40THz, 15dB, Fiberworks
QSFP28, 100GBASE, DWDM, 25km1312,58 nm / 228,40THz, 15dB, FiberworksProductnbrQSFP28-L25-DO284-U
