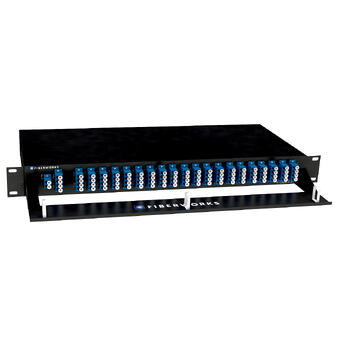

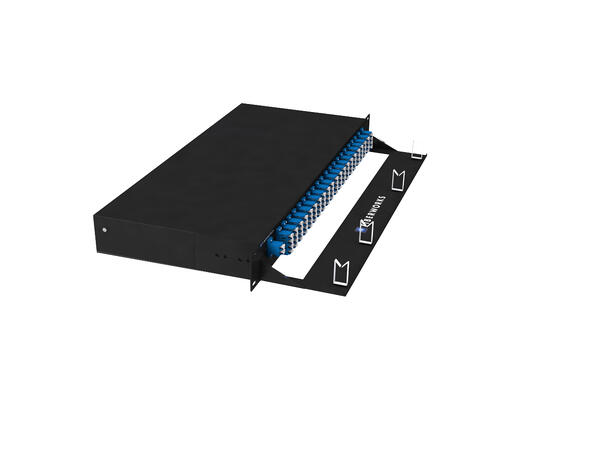

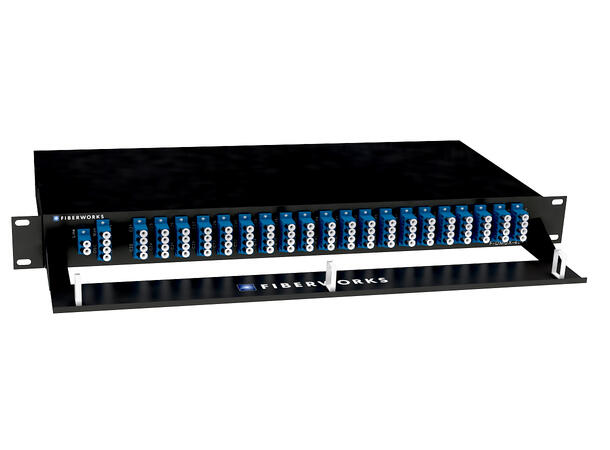

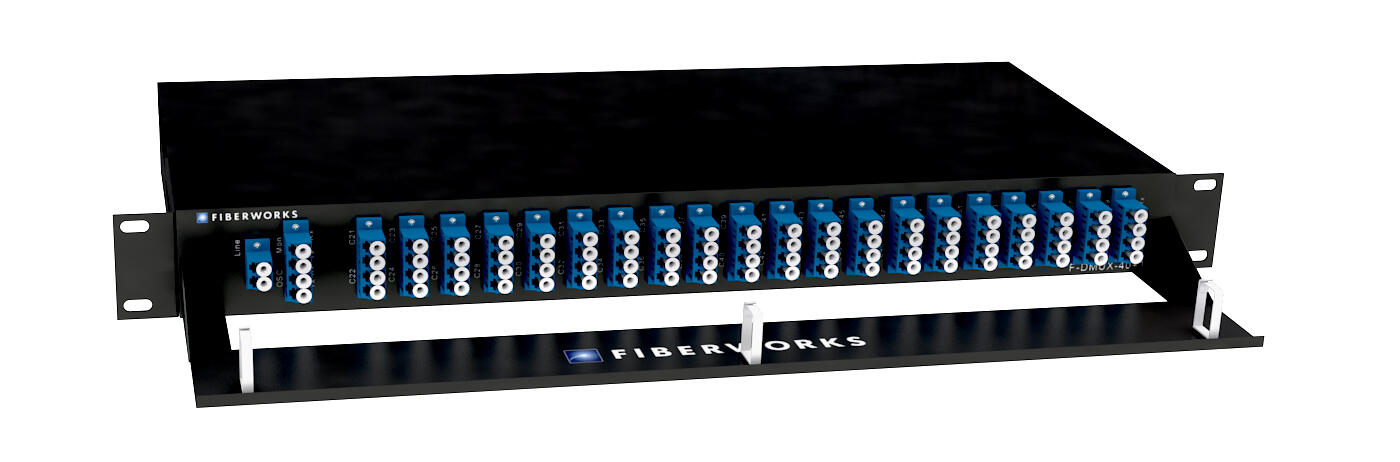

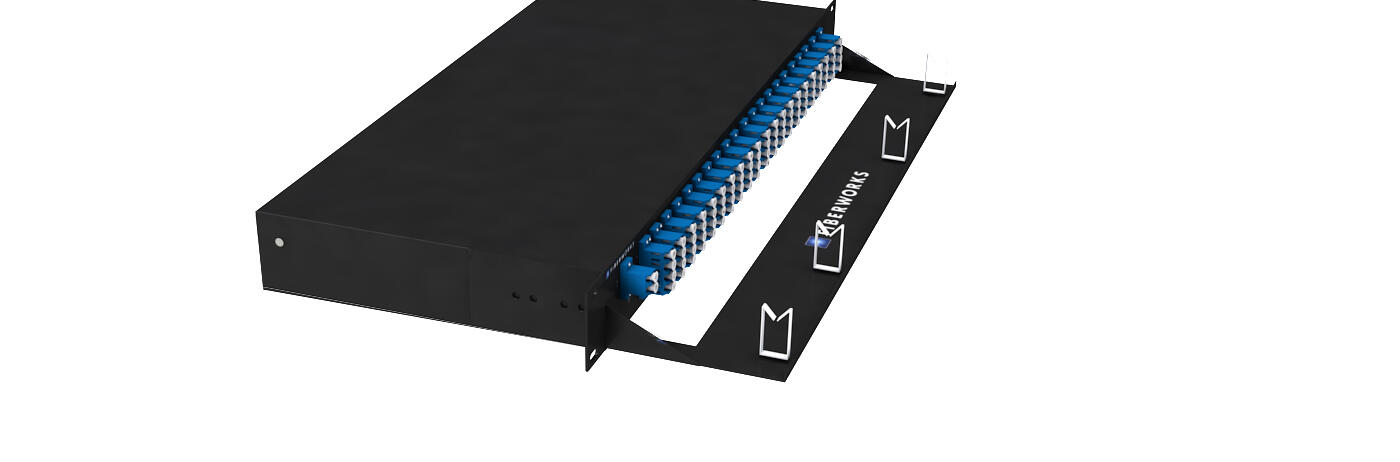

Fiberworks 40+1 DWDM Mux+Demux 19" 1RU

ITU ch. 21-60, 1310WB, Monitor, LC/UPC

Product nr: F-DMUX-40+1-2160-MLU
Product
DescriptionTechnical infoAccessories
Description

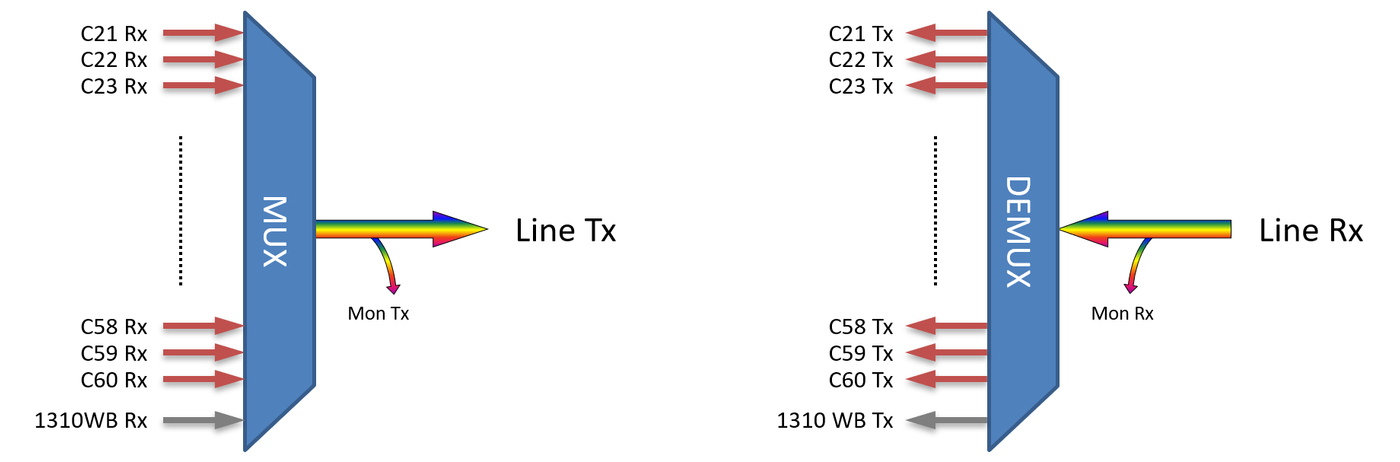

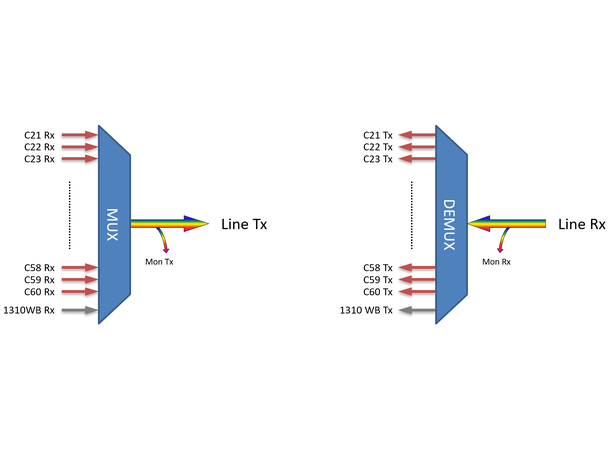

Med denne multiplekseren får man tilgang til de 40 vanligste DWDM-kanalene til en pris per kanal som ligger under CWDM. Den har monitorporter for enkel feilsøking og en 1310 nm wideband-port for bruk til f.eks. 40G, 100G, eksisterende samband på 1310 nm, low-band CWDM (1270-1450 nm) eller OSC-kanal på 1490 eller 1510 nm.

FEATURES
- Dense WDM in compliance with ITU-T G.694.1
- 40 DWDM channels 21-60 with 100 GHz spacing

- Based on gaussian arrayed waveguide grating (AWG)
- Uniform insertion loss across all channels
- Typical insertion loss 3.0 dB
- Protocol transparent (support 1G, 10G etc.)
- 19" rack module, height 1U
- LC/UPC connectors

Technical info

Product information

Form factor 19" 1RU
Fiber type SM
Line fiber Double (fiber pair, mux+demux)
Channel count 40
Add/drop Capabilities No, mux/demux only
Connector type Straight (UPC, PC)
Other features
  • Expansion port 1310 nm
  • Monitor port
Customs classification codes
  • ECCN: EAR99
  • HS: 8517.62.0090
