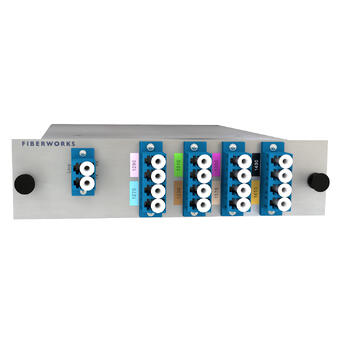

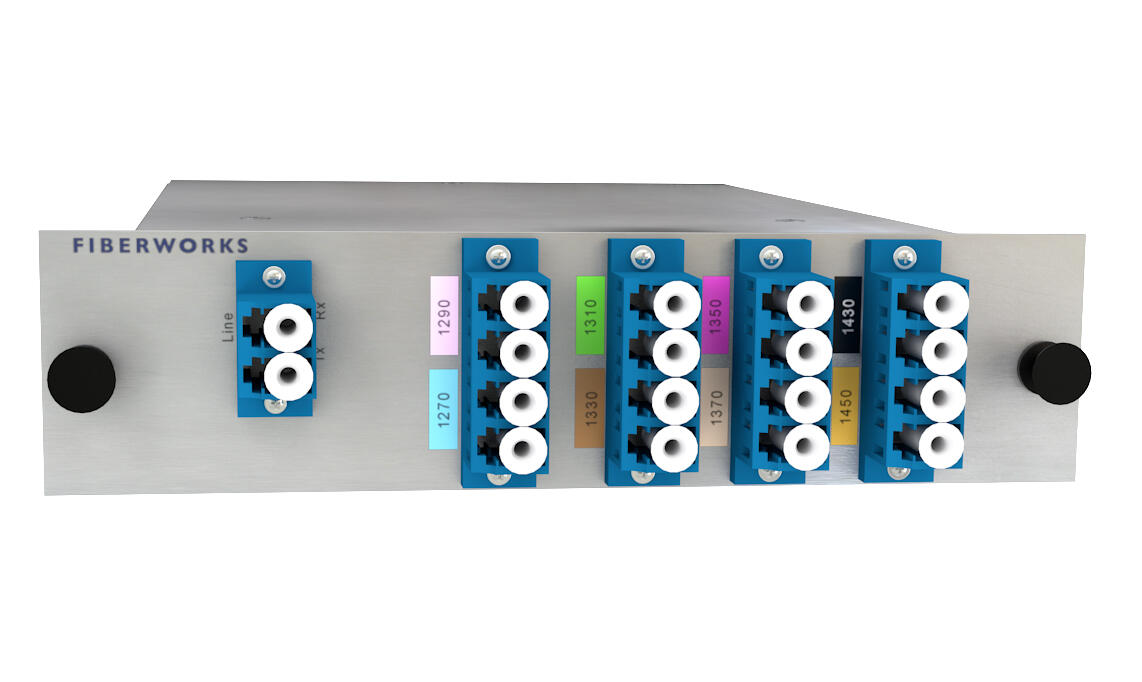

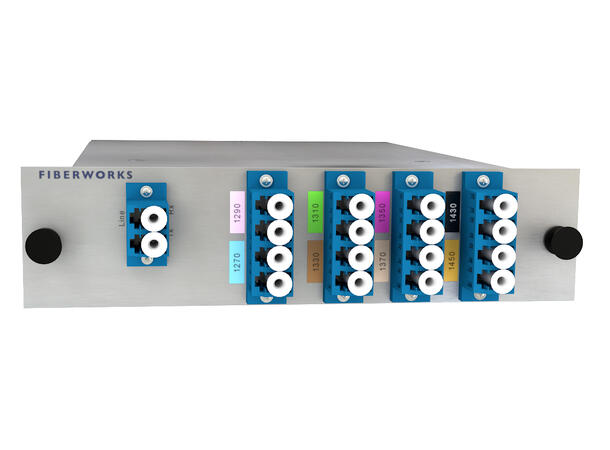

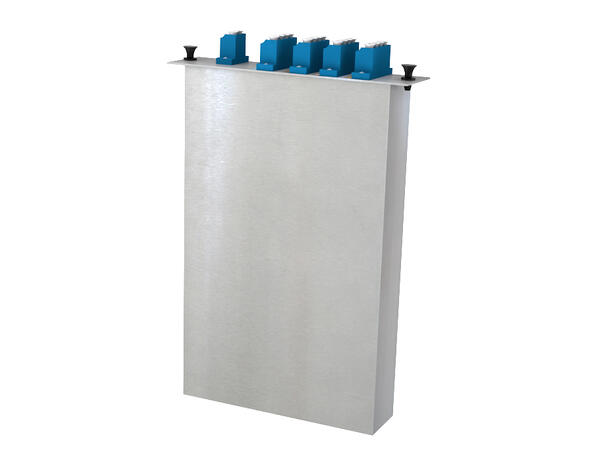

Fiberworks 8 ch. CWDM Mux+Demux, LGX2

Low band C27-C37 & C43-C45, LC/UPC

Product nr: F-CMUX+8-LB2745-LGX2
Product
DescriptionTechnical infoAccessories
Description
FEATURES
- Coarse WDM in compliance with ITU-T G.694.2

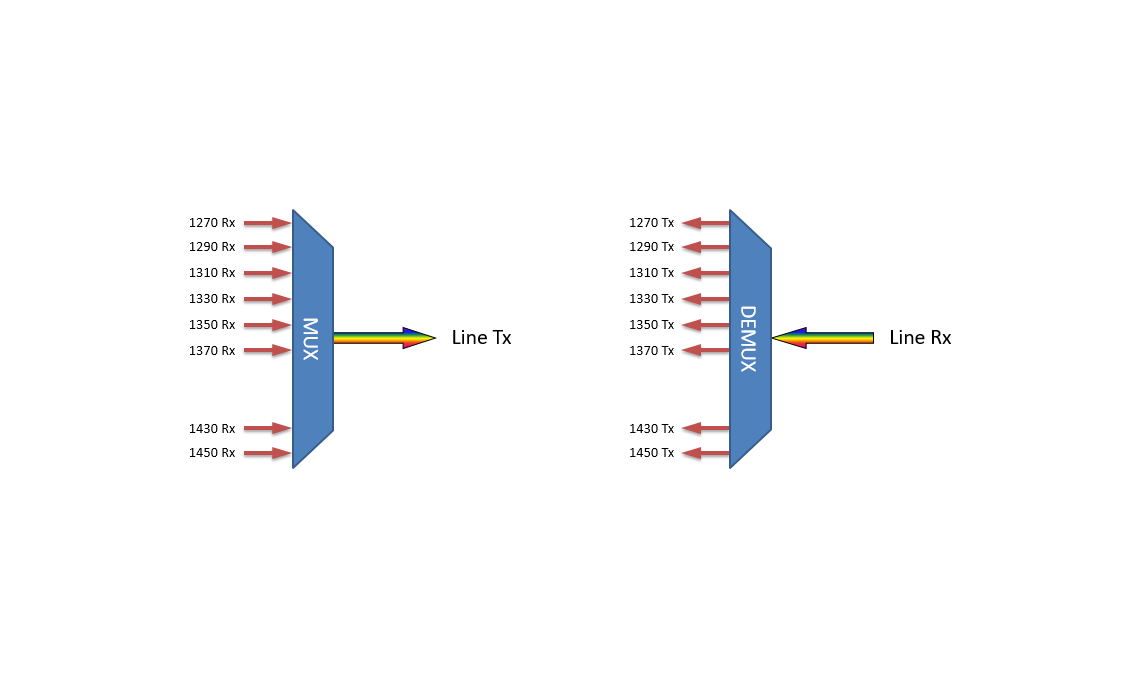

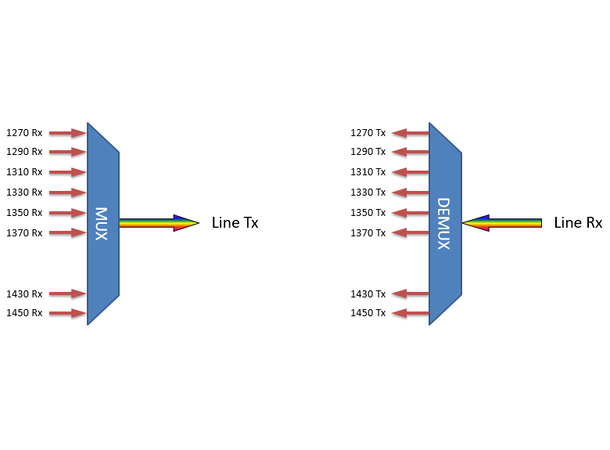

- 8 CWDM channels 1271, 1291, 1311, 1331, 1351, 1371, 1431 and 1451 nm
- To be used standalone or together with CMUX-8+1 to create a 16-channel system
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)
- Three modules fit in 1U in 19" rack

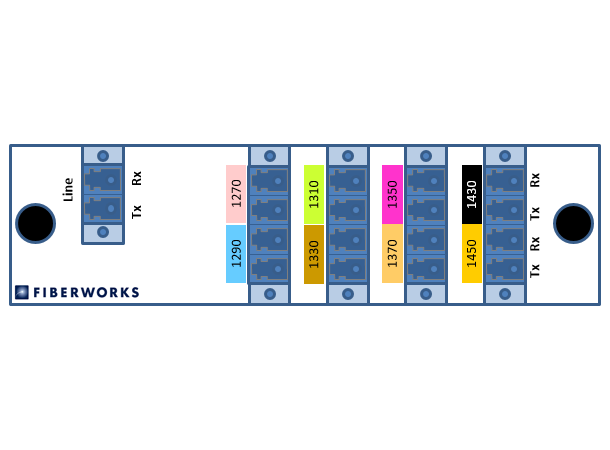

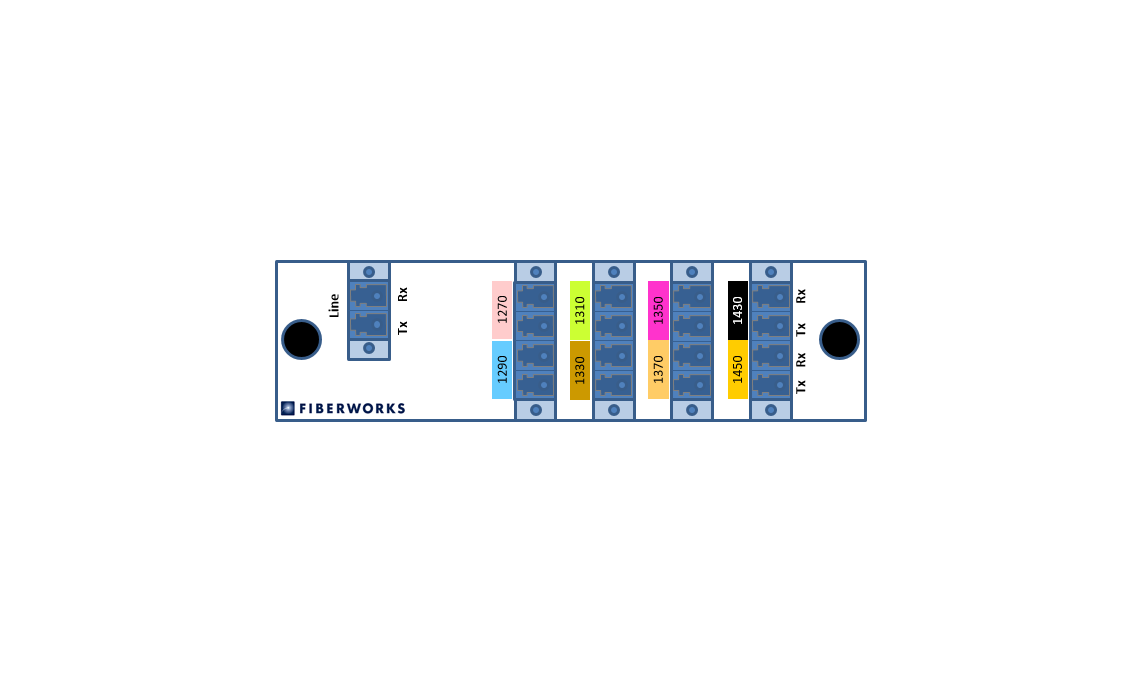

- LC/UPC connectors

Technical info

Product information

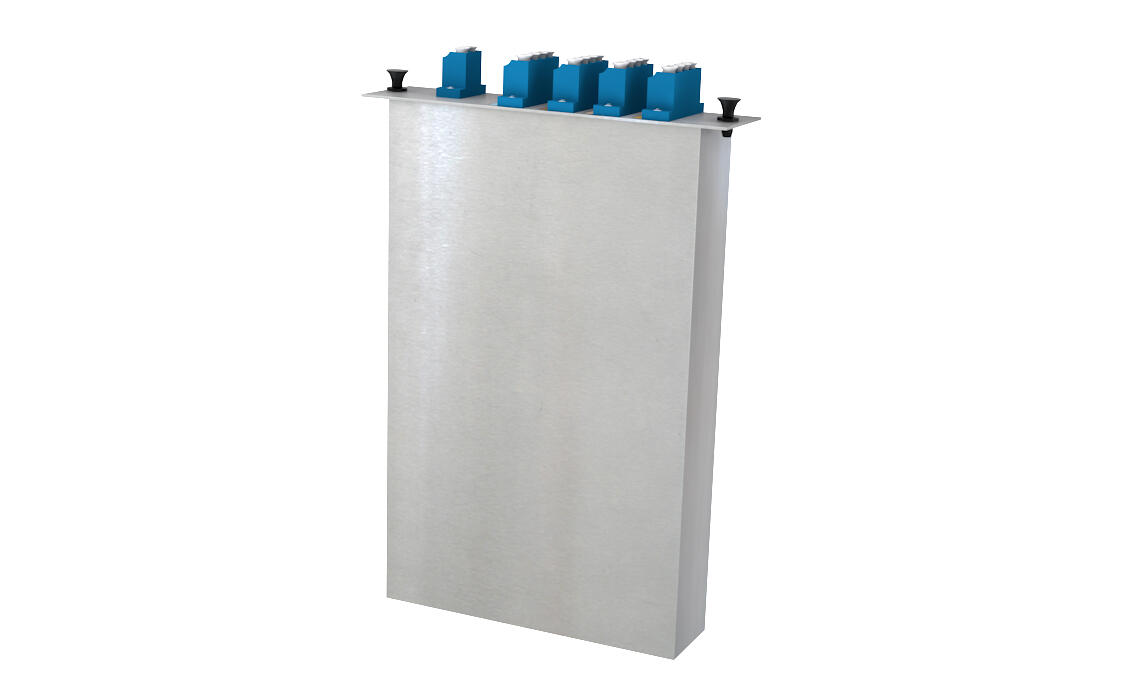

Form factor LGX2
Fiber type SM
Line fiber Double (fiber pair, mux+demux)
Channel count 8
Add/drop Capabilities No, mux/demux only
Connector type Straight (UPC, PC)
Connector LC/UPC
Customs classification codes
  • ECCN: EAR99
  • HS: 8517.62.0090
