F-CMUX-4+1-5157-MLU Fiberworks AS Fiberworks 4+1 ch. CWDM Mux+Demux C51-C57 + 1310nm/CWDM upgrade, Mon.ports

Fiberworks 4+1 ch. CWDM Mux+Demux C51-C57 + 1310nm/CWDM upgrade, Mon.ports

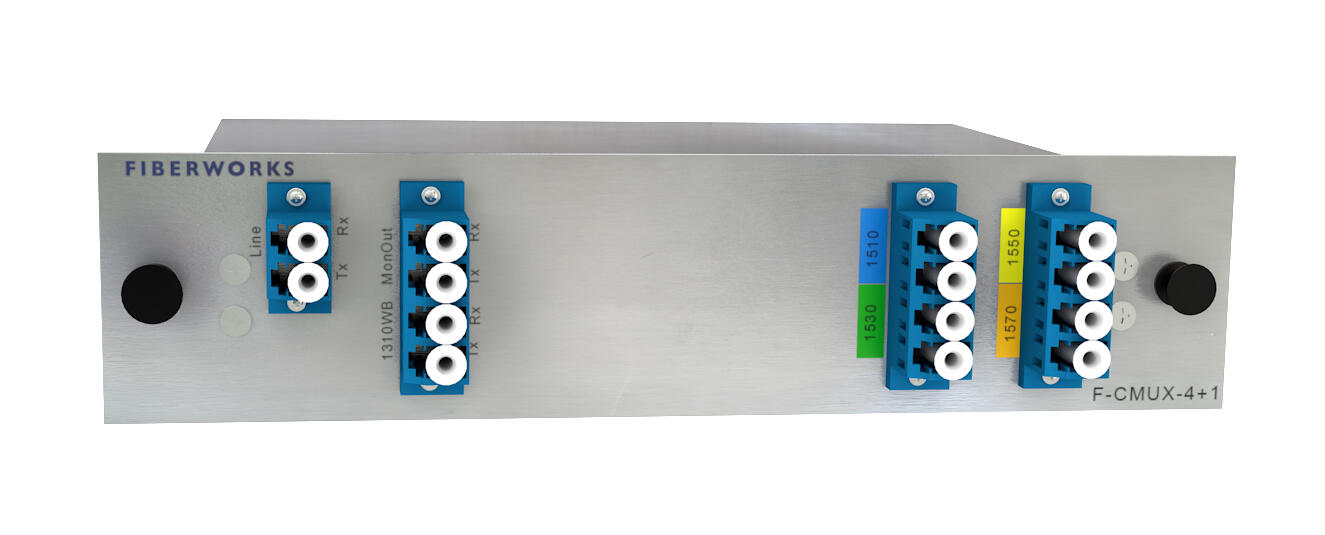

Fiberworks 4+1 ch. CWDM Mux+Demux

C51-C57 + 1310nm/CWDM upgrade, Mon.ports

Product nr: F-CMUX-4+1-5157-MLU

Product

Description

FEATURES
- Coarse WDM in compliance with ITU-T G.694.2
- CWDM channels 1510nm, 1530nm, 1550nm, 1570nm

- With 1310nm wideband port

- Two 2% monitor ports for easy troubleshooting
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
- LC/UPC connectors

Technical info

Product information

Form factor	Fiberworks
Fiber type	SM
Line fiber	Double (fiber pair, mux+demux)
Channel count	4
Add/drop Capabilities	No, mux/demux only
Connector type	Straight (UPC, PC)
Connector	LC/UPC
Other features	Expansion port 1310 nm Monitor port
Customs classification codes	ECCN: EAR99 HS: 8517.62.0090
