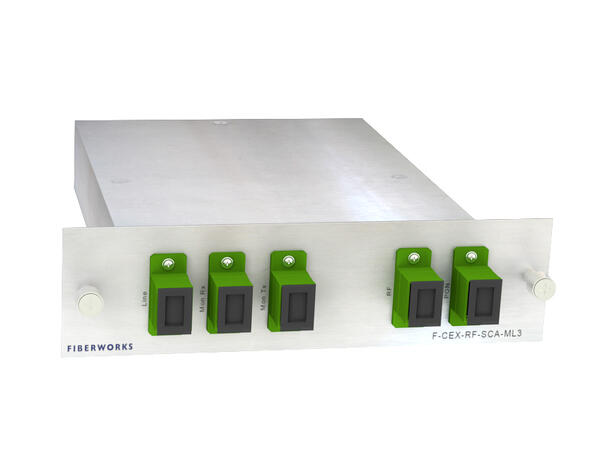

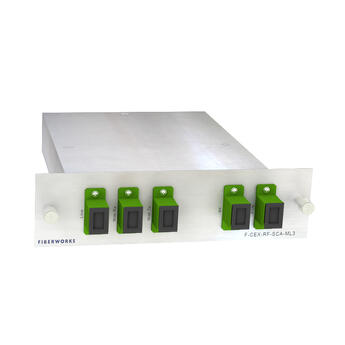

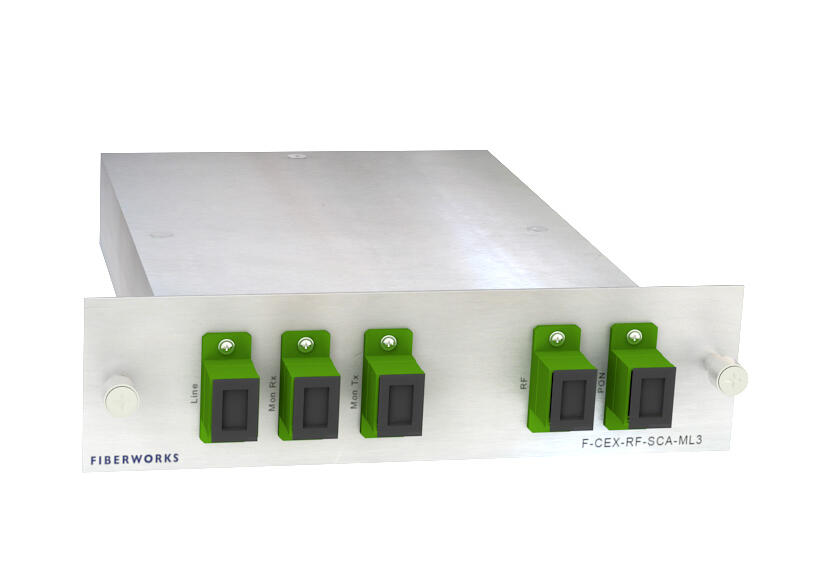

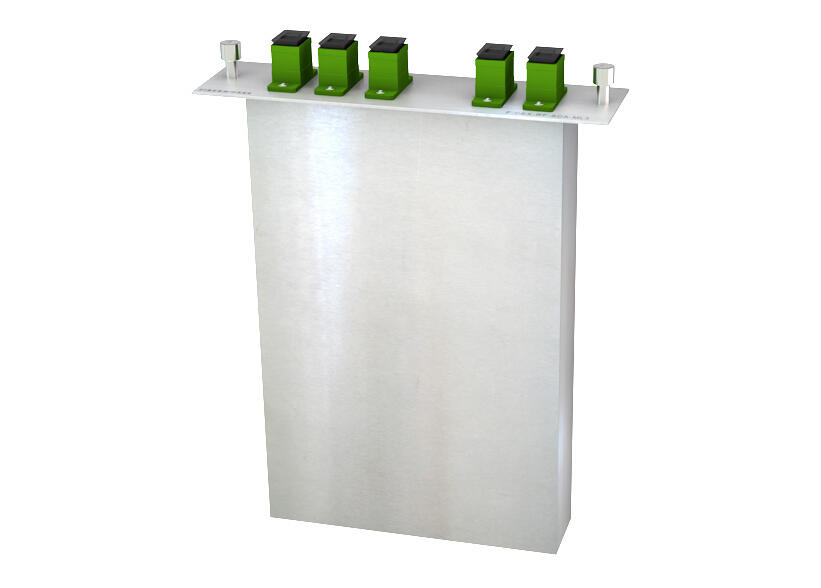

Fiberworks PON CEx mux w/mon.ports LGX3 RF + GPON/XGS-PON, SC/APC connectors Fiberworks PON CEx mux w/mon.ports LGX3 RF + GPON/XGS-PON, SC/APC connectors Fiberworks PON CEx mux w/mon.ports LGX3 RF + GPON/XGS-PON, SC/APC connectors Fiberworks PON CEx mux w/mon.ports LGX3 RF + GPON/XGS-PON, SC/APC connectors

Fiberworks PON CEx mux w/mon.ports LGX3

RF + GPON/XGS-PON, SC/APC connectors

Product no: F-CEX-RF-SCA-ML3
DescriptionTechnical infoAccessoriesAlternatives
Description
FEATURES

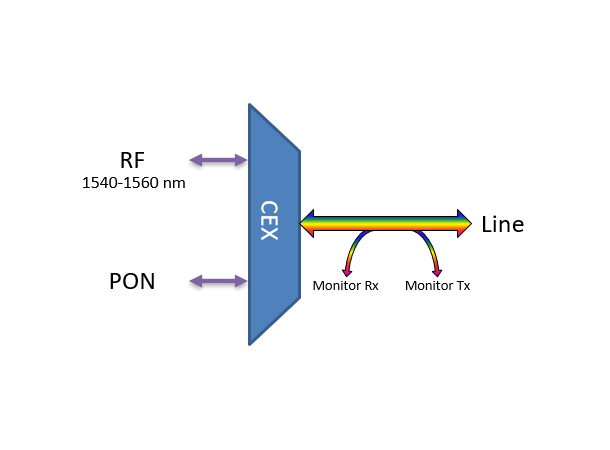

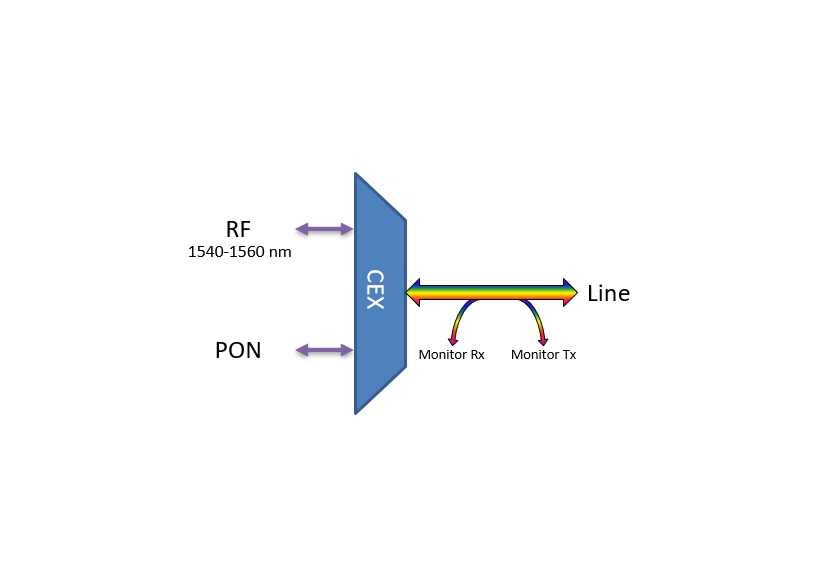

- Coexisting Element (CEx) based on passive wavelength division multiplexing
- PON port supports GPON according to ITU-T G.984 and XGS-PON according to ITU-T G.9807.1
- RF port supports RF video overlay on 1550 nm
- Low insertion loss

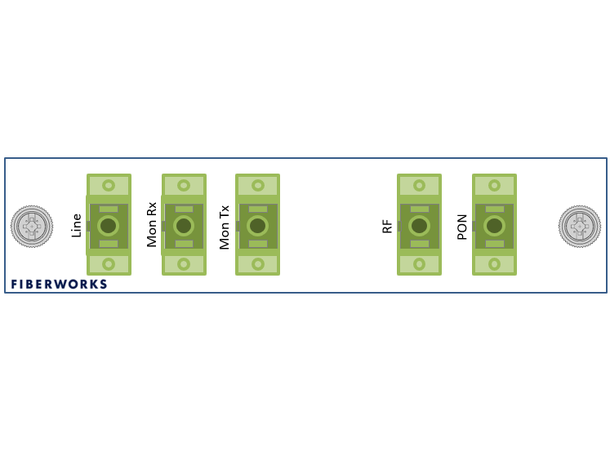

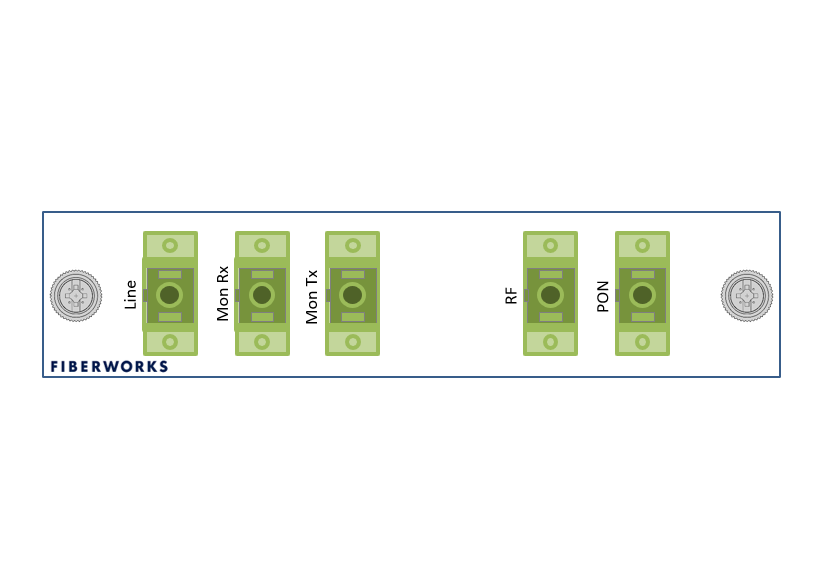

- Monitor ports for easy troubleshooting with live traffic
- Based on thin film optics with epoxy free optical path
- Compact LGX3 form factor - Three modules fit in 1U in 19" chassis or 14 modules in 3U chassis
- SC/APC connectors


Technical info

Product information

Form factor LGX3
Line fiber Single (bidi, mux/demux)
Channel count 2
Monitor port Yes (1%)
Connector SC/APC
