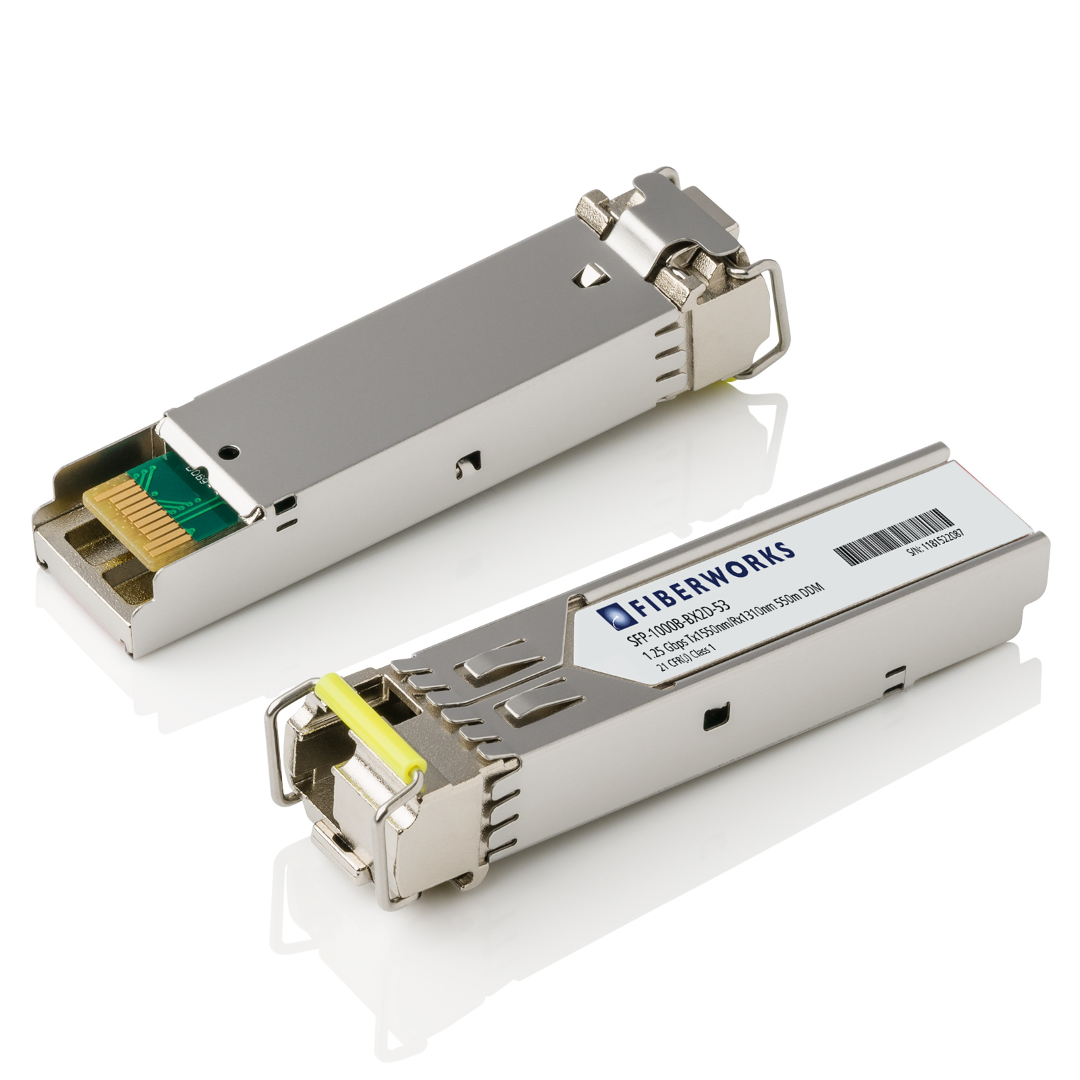

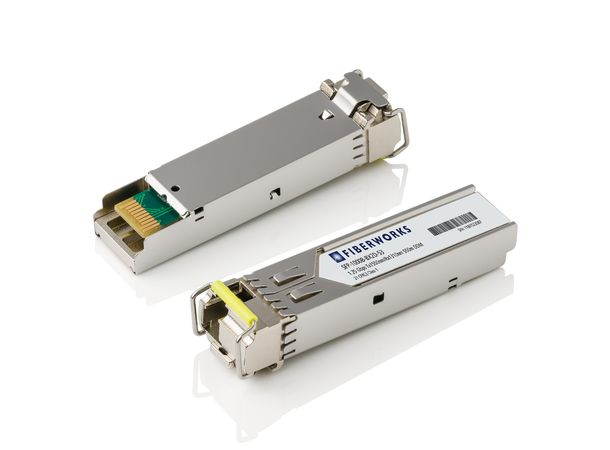

SFP BIDI, 1.25G, DDM, MM, 550m, I-Temp

TX/RX=1550/1310nm, 12 dB, LC

Product nr: SFP-GE-BX2D-53-RGD

Compatibility

Description

APPLICATIONS
• single fiber options 1310/1550
• 1000Base Ethernet

• FTTx

• Multimode fiber

FEATURES
• Up to 550 m transmission on 50/125µm MM fiber
• Hot-Pluggable SFP footprint
• LC optical interface
• compliant to SFP MSA and SFF-8472

Technical info

Form factor	SFP
Protocol / bit rate	Gigabit Ethernet
Media type	Multimode
Reach (dB)	12
Reach (km)	0,550
Wavelength (nm)	1310/1550
Laser Type	FP (Fabry-Perot)
Detector type	PIN
Line Modulation	NRZ
CDR	None
Tx power min. [dBm]	-15
Tx power max. [dBm]	-8
Rx sensitity [dBm]	-28
Rx overload limit [dBm]	-8
DDM	No
Connector	LC Simplex
Safety class	Laser Class 1
Operating temperature range	-40°C - +85°C (Industrial)
Temperature range, storage	-40°C - +85°C
Customs classification codes	ECCN: 5A991 HS: 8517.62.0090
